Technical Parameters







Scope of application
DN150mm-1500mm		 Construction time
3-5h
Weight
About 750Kg		 Size
1390×775×1725mm
Power supply requirements
400V / 50Hz /64A		 Light stand
A set of 2×4×1000w lamp stands, including a full set of lamp feet, suitable for DN600-1500mm pipeline repair construction
Light Chain
A set of 8×1×650w light chains, including a full set of light feet, suitable for DN150-500mm pipeline repair construction; optional 4x1x650w expansion light chains		 Light Curing Cable
Built-in 180m light-curing cable; electric/manual dual retracting and releasing modes;retracting and releasing speed 0.05-4m/min

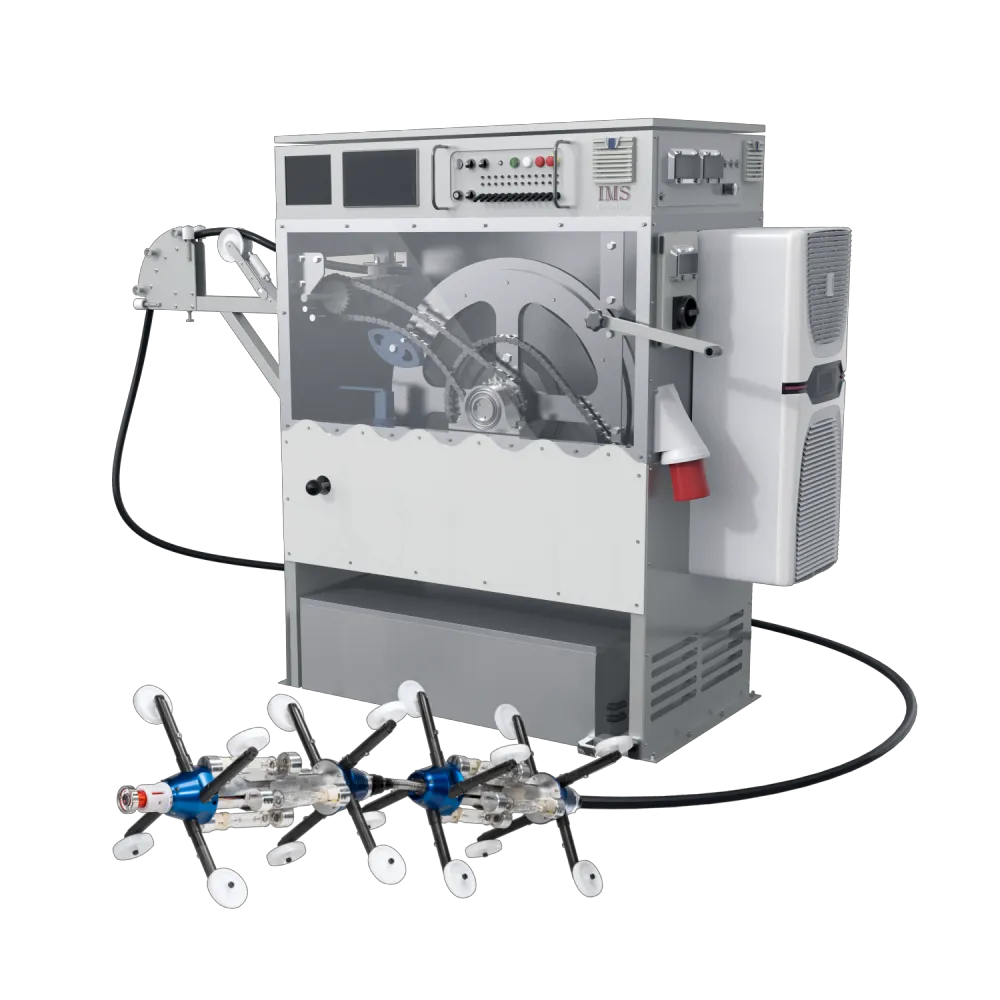

Light curing host
Built-in 8x1000w UV lamp drive unit; single lamp drive power 400w/650w/1000w adjustable, can be upgraded to 12x1000w drive unit; PLC/manual control two modes, can avoid computer system crash in emergency situation, resulting in lining curing failure		 Control unit
Portable touch control unit with embedded light curing control system and 10-inch tablet for recording repair videos; individual records of actual operating time of each UVA lamp for convenient UVA lamp life management and construction quality control; built-in UV light curing control and reporting software







Technical Parameters







Scope of application
DN150mm-1500mm		 Construction time
3-5h
Weight
About 750Kg		 Size
1390×775×1725mm
Power supply requirements
400V / 50Hz /64A		 Light stand
A set of 2×4×1000w lamp stands, including a full set of lamp feet, suitable for DN600-1500mm pipeline repair construction
Light Chain
A set of 8×1×650w light chains, including a full set of light feet, suitable for DN150-500mm pipeline repair construction; optional 4x1x650w expansion light chains		 Light Curing Cable
Built-in 180m light-curing cable; electric/manual dual retracting and releasing modes;retracting and releasing speed 0.05-4m/min
Light curing host
Built-in 8x1000w UV lamp drive unit; single lamp drive power 400w/650w/1000w adjustable, can be upgraded to 12x1000w drive unit; PLC/manual control two modes, can avoid computer system crash in emergency situation, resulting in lining curing failure		 Control unit
Portable touch control unit with embedded light curing control system and 10-inch tablet for recording repair videos; individual records of actual operating time of each UVA lamp for convenient UVA lamp life management and construction quality control; built-in UV light curing control and reporting software





Application scenario cases

Application scenario cases
