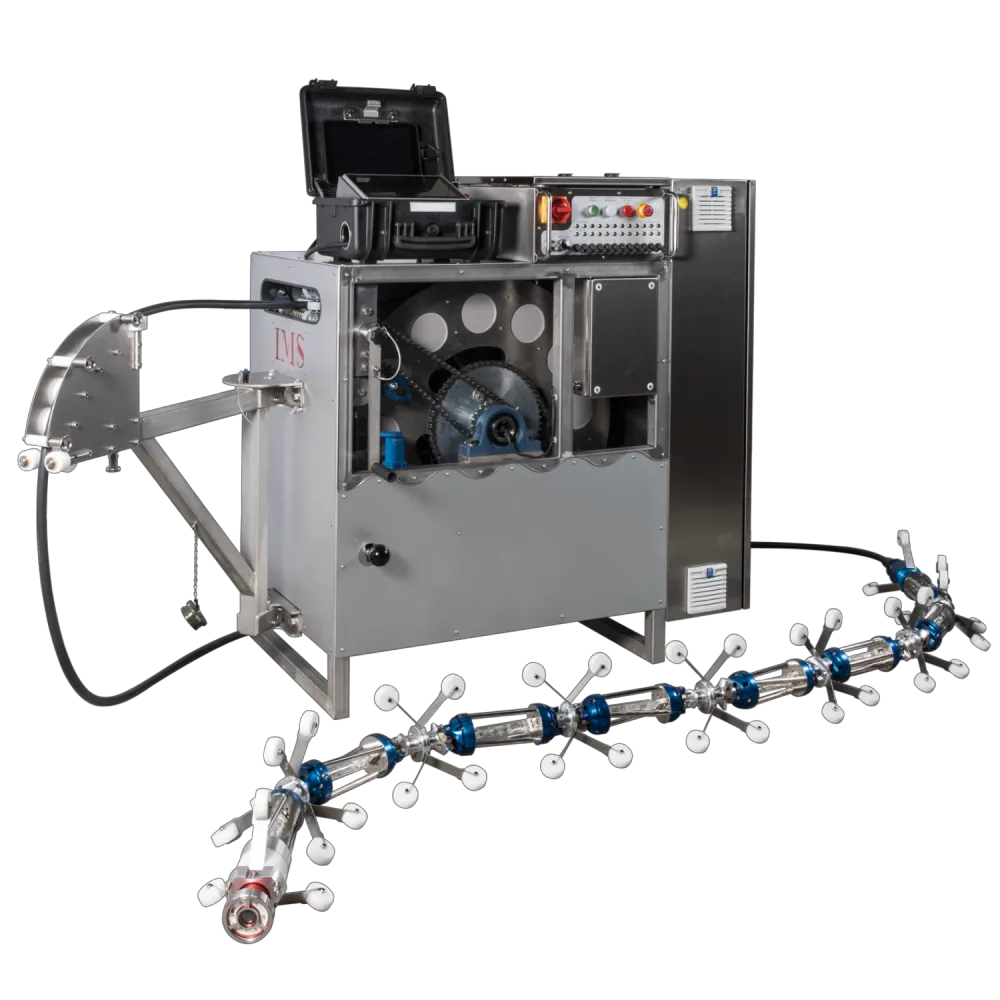

Light stand A set of 4×3×650w lamp stands, including a full set of lamp feet, suitable for DN500-1200 pipeline repair construction
Light Chain A set of 8×1×650w light chains, including a full set of light feet, suitable for DN150-600 pipeline repair construction; optional 4x1x650w expansion light chains
Light Curing Cable Built-in 220m light-curing cable; electric/manual dual retracting and releasing modes; retracting and releasing speed 0.05-4m/min
Light curing host Built-in 12x650w UV lamp drive unit; UV lamp drive power 400w-650w adjustable; PLC/manual control two modes, can avoid computer system crash in emergency situations, resulting in lining curing failure
Control unit Portable touch control unit with embedded light curing control system and 10-inch tablet for recording repair videos; individual records of actual operating time of each UVA lamp for convenient UVA lamp life management and construction quality control; built-in UV light curing control and reporting software
Technical Parameters
Scope of application DN150mm-1200mm
Construction time 3-5h
Weight About 550Kg
Size 1200×740×1260mm
Power supply requirements 400V / 50Hz /32A
