PRODUCTS

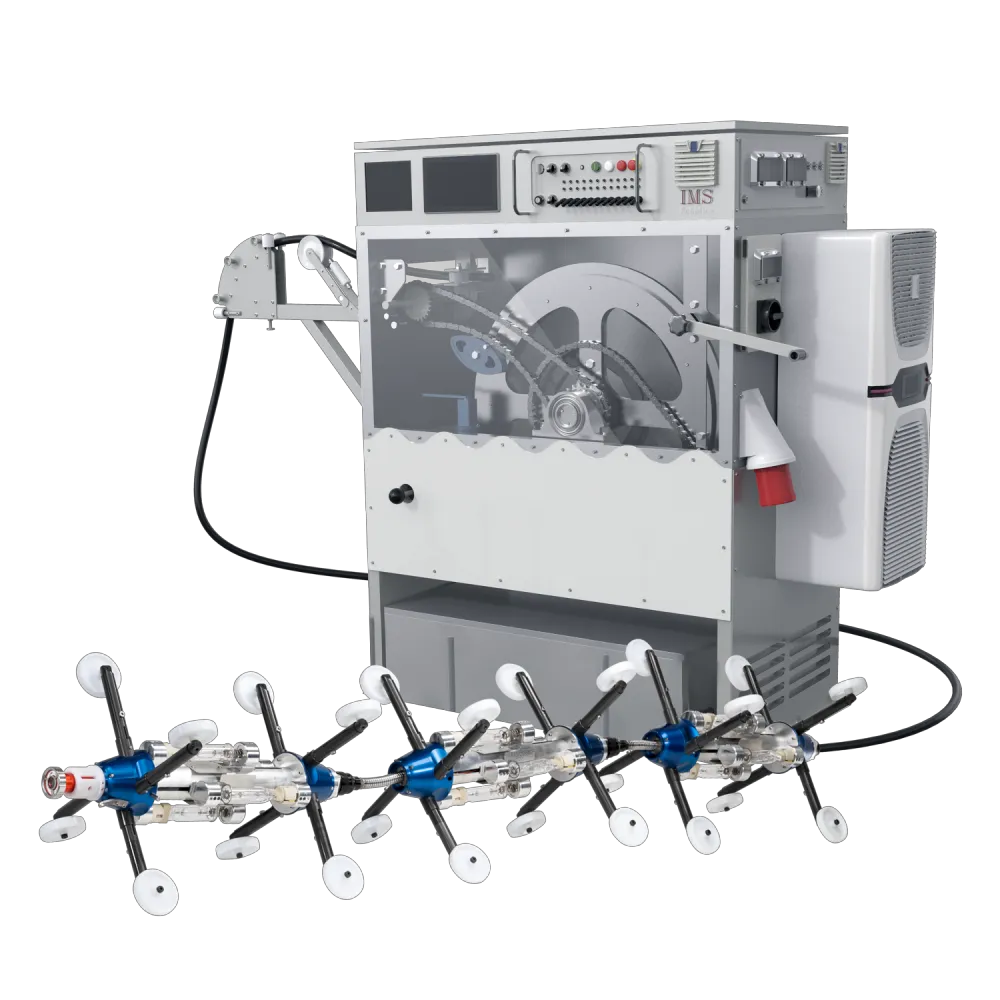

  UV 12000





Power

· 12 x 400 / 650 / 1000 Watt

Nominal diameters

· DN 150 to DN 1600

Cable drum

· for max. 180 m cable length

· L 1620mm x W 775mm x H 1750 mm (without extension arm)

· Weight: 780 kg

Curing cable

· Temperature-resistant hybrid cable: with connectors on both sides

Power supply

· Central supply point according to VDE-three-phase current

· main switch

UVA Ignition system

· Ignition control and fuse protection of the load circuits for 12 lamps

· power dimmable/selectable

· EMERGENCY STOP for lamps and cable drum

Control

· Industrial control with 10 inch touch operated panel

Equipment / special features

· Remote maintenance software

· W-LAN interface

· program for tightness test

· Lamp operating hours counter

· Air conditioner for cooling the cable drum

· Display of the video image via a 10 inch touch screen with software for video recording

Camera

· Temperature resistant colour camera

Further options

· Basic packer set DN 150 to DN 800 incl. of accessories set

· UV starter set

· Light source extension 4 x 400 / 650 Watt (lamps 9 to 12)

· Light source core 4 x 3 x 400 / 650 Watt

· Light source core 3 x 4 x 1000 Watt

· Light source core 2 x 6 x 1000 Watt electrically extendable

· IMS UV rear view camera

· Monitors for front control

· Packer up to DN 1200 and for egg profile

· Spare UV lamps

· Wheel set DN 150 for light source 8 x 400 / 650 Watt

· packer camera

· Foil rack for protection foil

· Deflection roller set with trench strut

· Light source electric winch for light source

· construction site support incl. technical instruction/training

· Wheel set DN 1200 for light source 4x3x400/650 Watt



Technical Parameters







Scope of application
DN150mm-1600mm
Construction time
3-5h
Weight
About 750Kg
Size
1390×775×1725mm
Power supply requirements
400V / 50Hz /64A
Light stand
A set of 3×4×1000w lamp stands, including a full set of lamp feet, suitable for DN500-1600 pipeline repair construction
Light Chain
A set of 8×1×650w light chains, including a full set of light feet, suitable for DN150-600 pipeline repair construction; optional 4x1x650w expansion light chains
Light Curing Cable
Built-in 230m light-curing cable; electric/manual dual retracting and releasing modes; retracting and releasing speed 0.05-4m/min
Light curing host
Built-in 12x1000w UV lamp drive unit; UV lamp drive power 400w/650w/1000w adjustable; PLC/manual control two modes, can avoid computer system crash in emergency situations, resulting in lining curing failure
Control unit
Portable touch control unit with embedded light curing control system and 10-inch tablet for recording repair videos; individual records of actual operating time of each UVA lamp for convenient UVA lamp life management and construction quality control; built-in UV light curing control and reporting software







Technical Parameters







Scope of application
DN150mm-1600mm
Construction time
3-5h
Weight
About 750Kg
Size
1390×775×1725mm
Power supply requirements
400V / 50Hz /64A
Light stand
A set of 3×4×1000w lamp stands, including a full set of lamp feet, suitable for DN500-1600 pipeline repair construction
Light Chain
A set of 8×1×650w light chains, including a full set of light feet, suitable for DN150-600 pipeline repair construction; optional 4x1x650w expansion light chains
Light Curing Cable
Built-in 230m light-curing cable; electric/manual dual retracting and releasing modes; retracting and releasing speed 0.05-4m/min
Light curing host
Built-in 12x1000w UV lamp drive unit; UV lamp drive power 400w/650w/1000w adjustable; PLC/manual control two modes, can avoid computer system crash in emergency situations, resulting in lining curing failure
Control unit
Portable touch control unit with embedded light curing control system and 10-inch tablet for recording repair videos; individual records of actual operating time of each UVA lamp for convenient UVA lamp life management and construction quality control; built-in UV light curing control and reporting software
