Water Supply Inspection
>

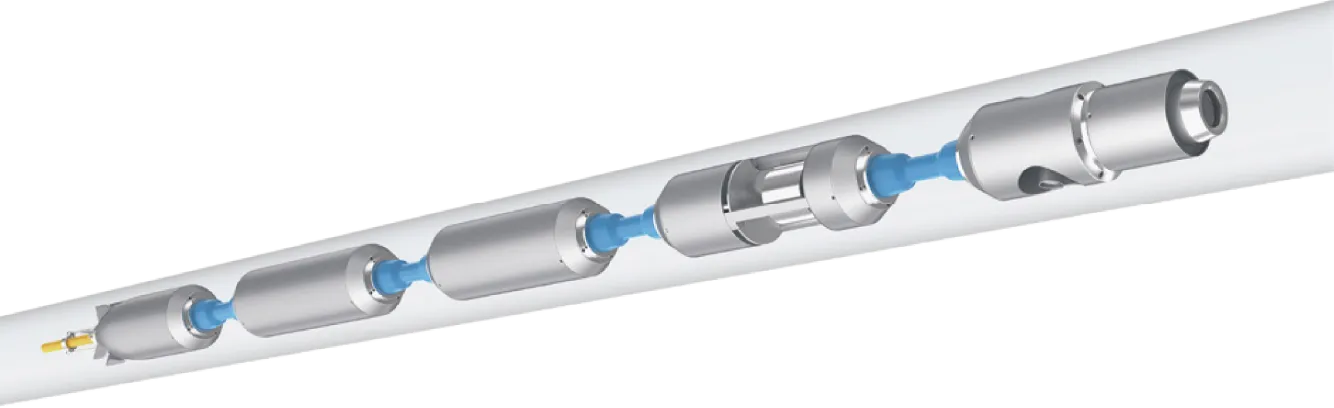

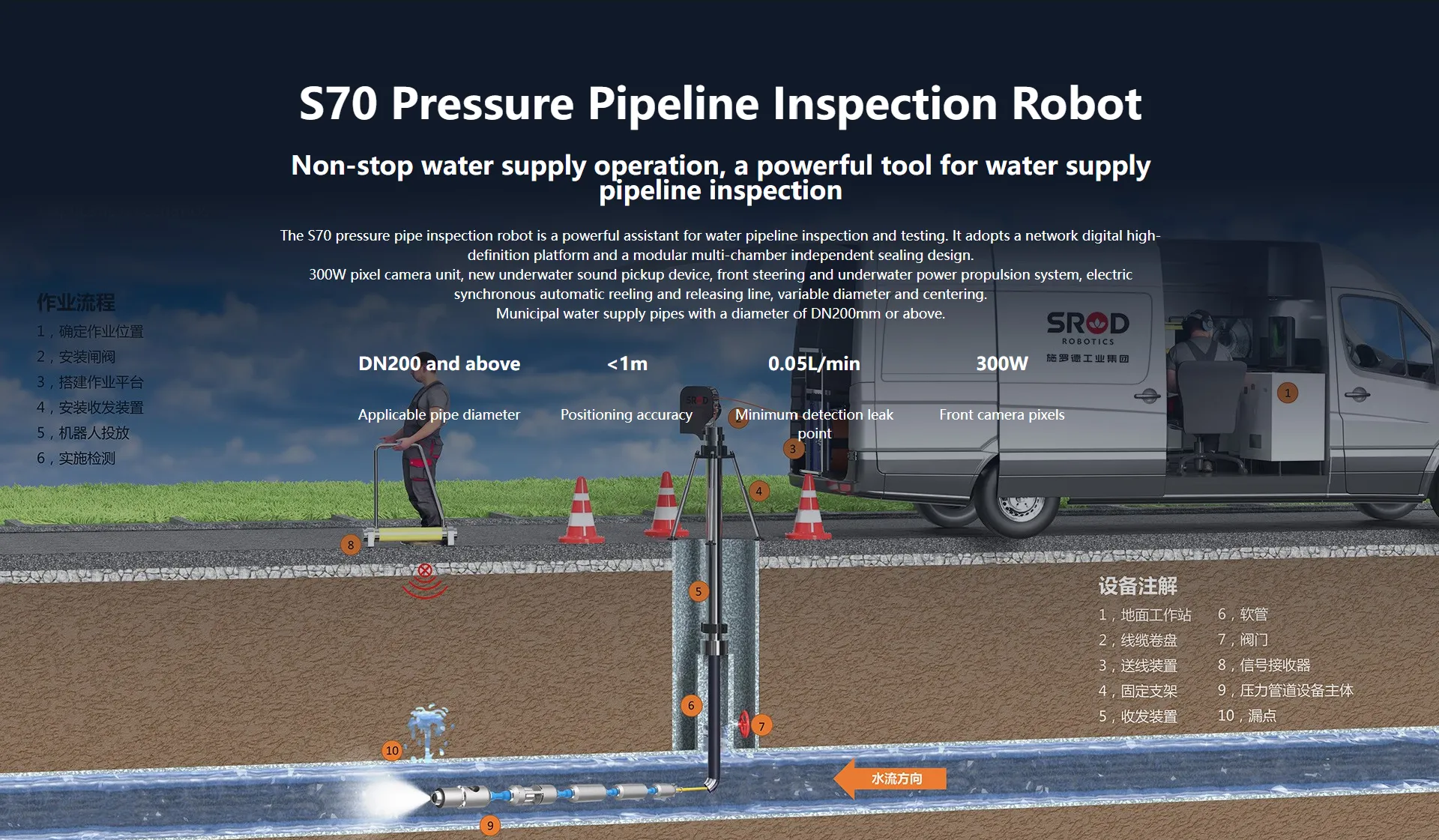

S70 Pressure Pipe Inspection Robot
Technical Parameters
Camera unit
300W pixels
Powertrain
Equipped with active propulsion system
Power Steering
Can be controlled to enter the branch pipeline for testing
Applicable pipes
Steel pipes, cement pipes, PVC, PE, etc.
Applicable pipe diameter
DN200mm and above
Cable reels
Standard 1000M, can be customized up to 2km
Reducer centered
The robot is relatively centered, and the image quality is clearer and more stable
Battery life
Remote back-end power supply can achieve unlimited battery life
Control Terminal
13.3-inch controller, tablet computer (optional)
Protection level
IP68
Operating temperature
-20~55℃
Motor function
Maximum speed of 15 m/min
Pay-off and retract
Automatic cable arrangement, electric pay-off and retraction
Technical Parameters
Camera unit
300W pixels
Powertrain
Equipped with active propulsion system
Power Steering
Can be controlled to enter the branch pipeline for testing
Applicable pipes
Steel pipes, cement pipes, PVC, PE, etc.
Applicable pipe diameter
DN200mm and above
Cable reels
Standard 1000M, can be customized up to 2km
Reducer centered
The robot is relatively centered, and the image quality is clearer and more stable
Battery life
Remote back-end power supply can achieve unlimited battery life
Control Terminal
13.3-inch controller, tablet computer (optional)
Protection level
IP68
Operating temperature
-20~55℃
Motor function
Maximum speed of 15 m/min
Pay-off and retract
Automatic cable arrangement, electric pay-off and retraction

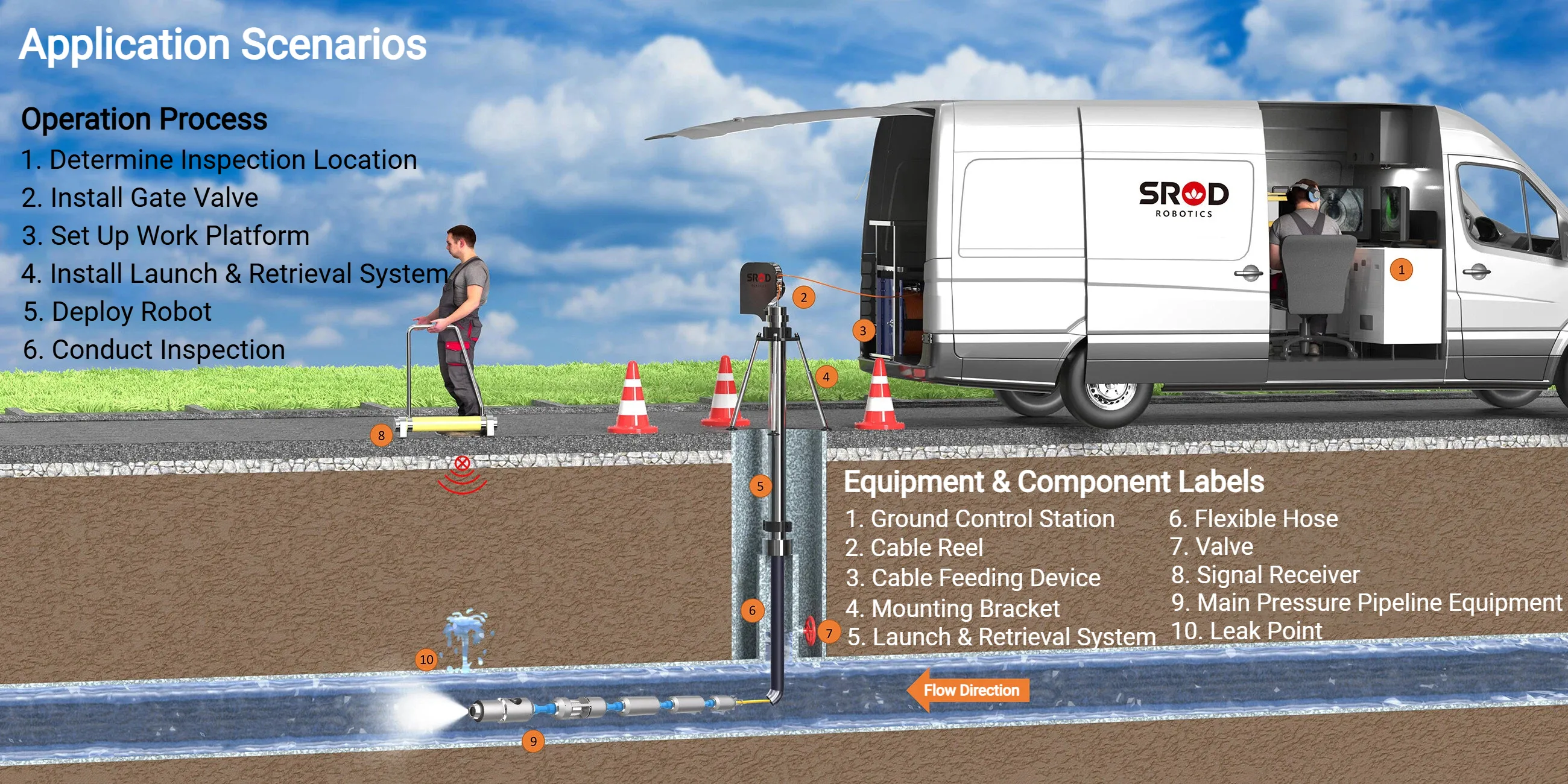

Application scenario cases
Application scenario cases
