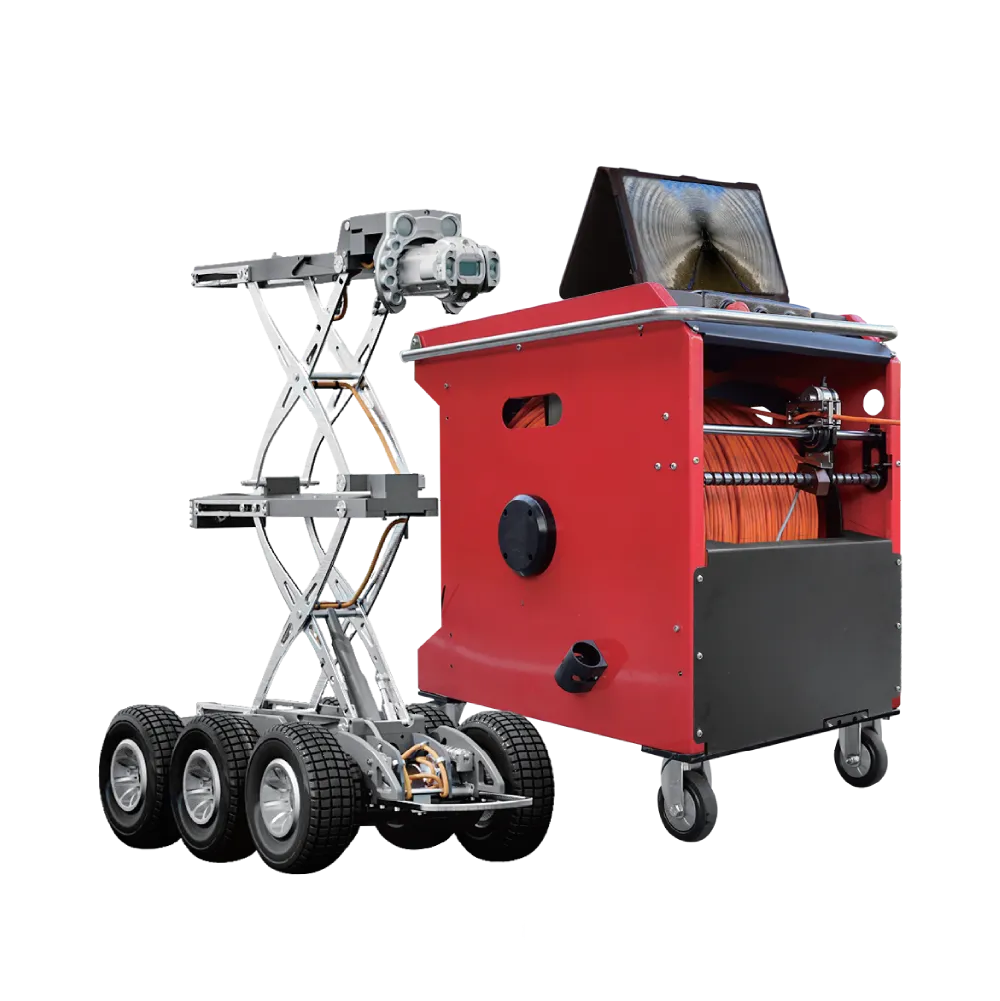

S400 Pipe Inspection Robot: Advanced Solution for Pipe Inspection

A Pioneer Of Embodied Intelligent Special-Purpose Robots Focusing On Confined Space

EN

PRODUCTS

Technical Parameters

Scope of application DN300mm-3000mm	Lens protection The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle surmounting ability Minimum climbing ability up to 35°	Protection level IP68
Camera unit Resolution: 2800*1840, 210W pixel non-delay high-definition camera	Drive Six-wheel drive, powerful horsepower, maximum load capacity up to 49kg
Zoom 10× optical, 16× digital	Wire take-up vehicle Built-in 15Ah long-life battery, easily handles 500-1000m ultra-long distance detection
Lifting method Double "X" type electric lift, the lifting frame can reach up to 600mm	Cables 500m, 1000m or customized
Positioning With high-precision GPS positioning system, real-time positioning	Meter Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination Main light 8×2W auxiliary light 10×3.5W	Anti-rollover design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement With laser width measurement function	Defogging With one-button defog function

Technical Parameters

Scope of application DN300mm-3000mm	Lens protection The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle surmounting ability Minimum climbing ability up to 35°	Protection level IP68
Camera unit Resolution: 2800*1840, 210W pixel non-delay high-definition camera	Drive Six-wheel drive, powerful horsepower, maximum load capacity up to 49kg
Zoom 10× optical, 16× digital	Wire take-up vehicle Built-in 15Ah long-life battery, easily handles 500-1000m ultra-long distance detection
Lifting method Double "X" type electric lift, the lifting frame can reach up to 600mm	Cables 500m, 1000m or customized
Positioning With high-precision GPS positioning system, real-time positioning	Meter Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination Main light 8×2W auxiliary light 10×3.5W	Anti-rollover design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement With laser width measurement function	Defogging With one-button defog function
