S300YL Long-Distance Pipeline Inspection Robot

Excellent Obstacle-Crossing Ability

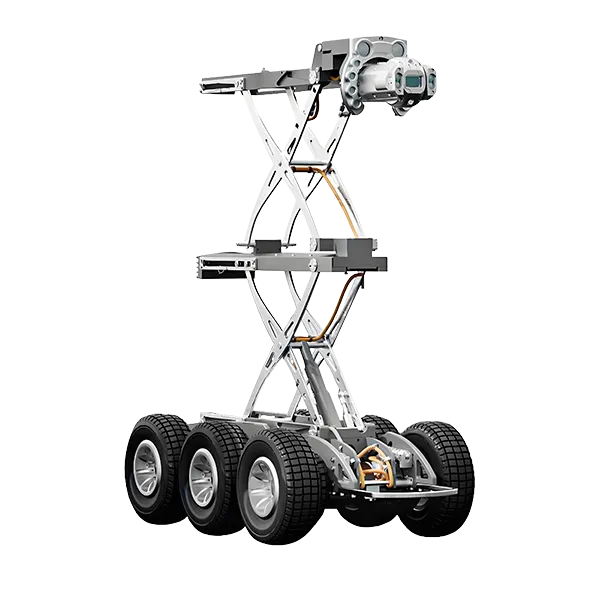

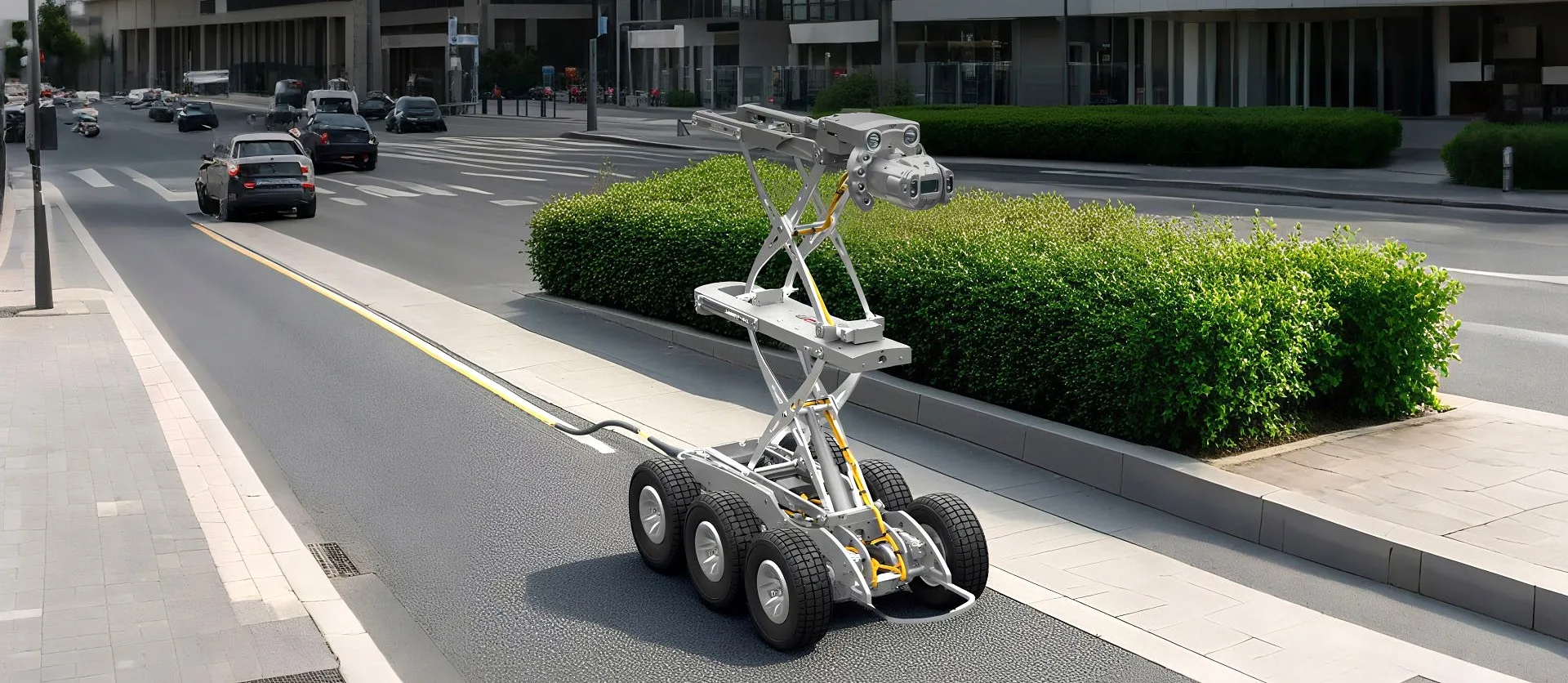

The S300YL long-distance pipeline inspection robot consists of a crawler, a long-distance cable reel, a portable tablet control terminal, and a software system.It is mainly used for pipeline network inspection of large urban pipelines and box culverts, with a maximum inspection distance of 1000 meters.It possesses excellent obstacle-crossing capabilities and achieves low-latency transmission of detection data over long distances.

1000m
Longest Inspection Distance

35°
Maximum Climbing Ability

210W
Digital High-Definition Camera

IP68
Protection Level

S300YL Long-Distance Pipeline Inspection Robot

Excellent Obstacle-Crossing Ability

1000m
Longest Inspection Distance

35°
Maximum Climbing Ability

210W
Digital High-Definition Camera

IP68
Protection Level

PRODUCT HIGHLIGHTS


Six-Wheel Drive The power chassis is equipped with high-power in-wheel motors, with a drive motor power of up to 6×210W, providing strong towing capacity and adapting to various complex terrains	Extra-High Lifting Range The lifting frame features a double X-shaped design, with a lifting height of up to 600mm, making it suitable for inspecting pipes of different sizes	Ultra-Long Distance Inspection With a built-in 15Ah long-lasting battery, it can easily handle ultra-long-distance detection of 500-1000 meters


Modular Design The lifting frame, wheel set, and front-mounted battery are detachable or replaceable, facilitating daily maintenance and adapting to different pipe diameters	HD PTZ Camera 210W pixel zero-latency digital HD camera, 360° surround scan lens, one-click defogging	Portable Tablet Control Terminal High-definition IPS full-view display, easy to carry, and simple interface operation

Technical Parameters

Scope Of Application DN300mm-3000mm	Defogging With one-button defog function
Obstacle Surmounting Ability Maximum climbing ability up to 35°	Protection Level IP68
Camera Unit Resolution: 2800*1840, 210W pixel non-delay high-definition camera	Drive Six-wheel drive, powerful horsepower, the drive motor power can reach 6×210W
Zoom 10× optical, 16× digital	Wire Take-Up Vehicle Built-in 15Ah long-life battery, easily handles 500-1000m ultra-long distance detection
Lifting Height Featuring a dual X-type design, the lifting height reaches up to 600 mm	Cables 500m, 1000m or customized
Positioning With high-precision GPS positioning system, real-time positioning	Battery Equipped with a built-in front-mounted battery, effortlessly handling long-range inspection
illumination Main light 8×2W Auxiliary light 10×3.5W	PTZ Control 360° axially, 270° radially
Width Measurement With laser width measurement function	Weight Of Winding Vehicle 125kg (including cable)

PRODUCT HIGHLIGHTS


Six-Wheel Drive The power chassis is equipped with high-power in-wheel motors, with a drive motor power of up to 6×210W, providing strong towing capacity and adapting to various complex terrains	Modular Design The lifting frame, wheel set, and front-mounted battery are detachable or replaceable, facilitating daily maintenance and adapting to different pipe diameters


Extra-High Lifting Range The lifting frame features a double X-shaped design, with a lifting height of up to 600mm, making it suitable for inspecting pipes of different sizes	HD PTZ Camera 210W pixel zero-latency digital HD camera, 360° surround scan lens, one-click defogging


Ultra-Long Distance Inspection With a built-in 15Ah long-lasting battery, it can easily handle ultra-long-distance detection of 500-1000 meters	Portable Tablet Control Terminal High-definition IPS full-view display, easy to carry, and simple interface operation

Technical Parameters

Scope Of Application DN300mm-3000mm	Defogging With one-button defog function
Obstacle Surmounting Ability Maximum climbing ability up to 35°	Protection Level IP68
Camera Unit Resolution: 2800*1840, 210W pixel non-delay high-definition camera	Drive Six-wheel drive, powerful horsepower, the drive motor power can reach 6×210W
Zoom 10× optical, 16× digital	Wire Take-Up Vehicle Built-in 15Ah long-life battery, easily handles 500-1000m ultra-long distance inspection
Lifting Height Featuring a dual X-type design, the lifting height reaches up to 600 mm	Cable 500m, 1000m or customized
Positioning With high-precision GPS positioning system, real-time positioning	Battery Equipped with a built-in front-mounted battery, effortlessly handling long-range inspection
illumination Main light 8×2W Auxiliary light 10×3.5W	PTZ Control 360° axially, 270° radially
Width Measurement With laser width measurement function	Weight Of Winding Vehicle 125kg (including cable)

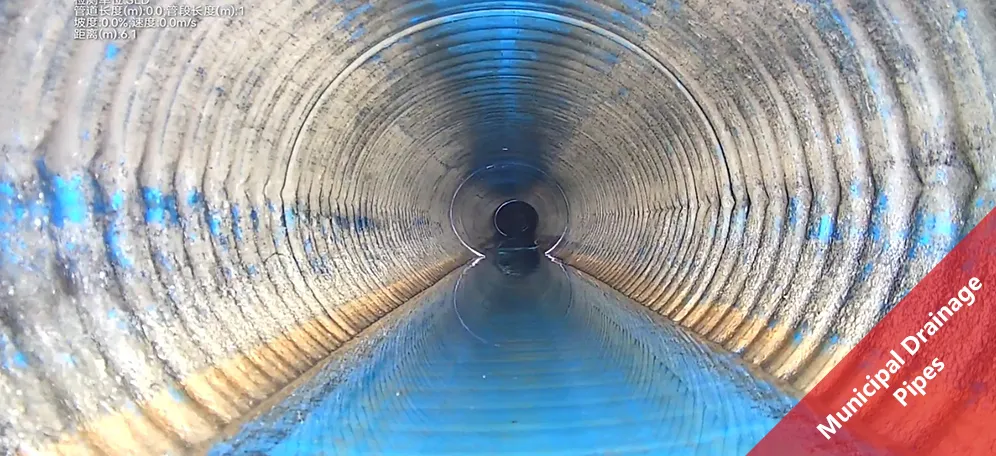

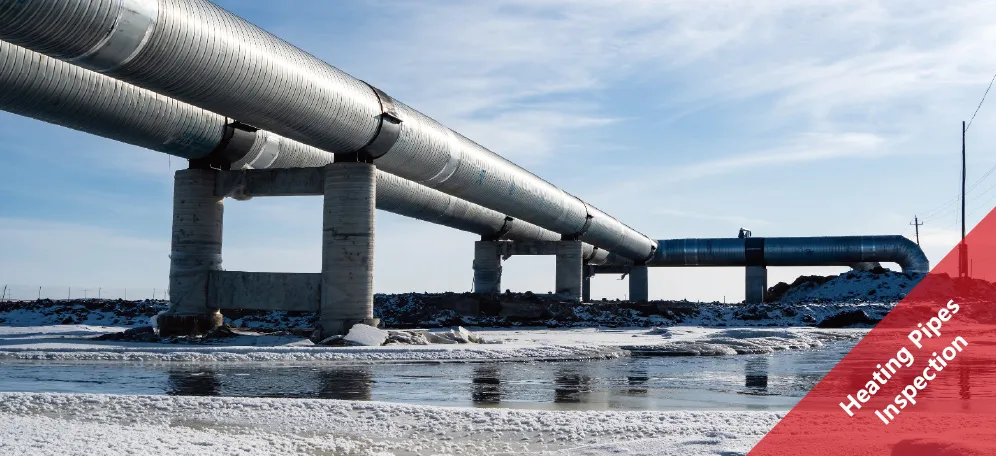

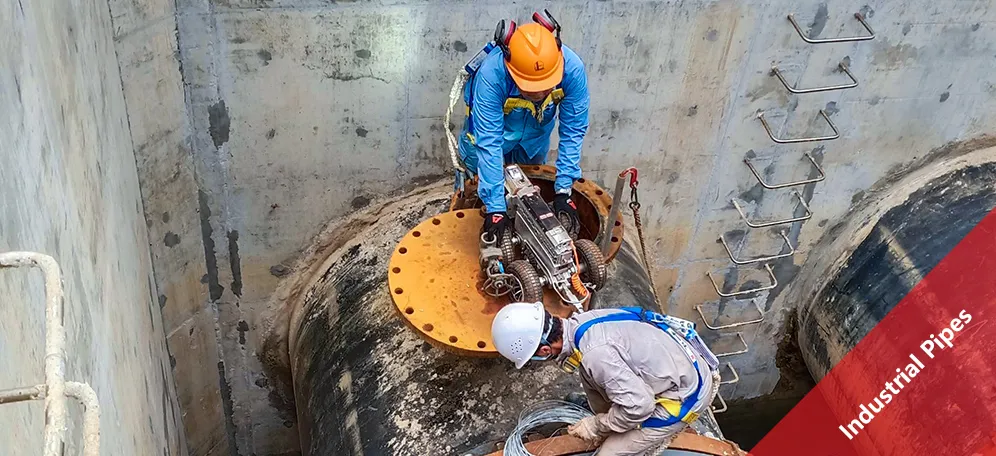

Application Scenario Cases
