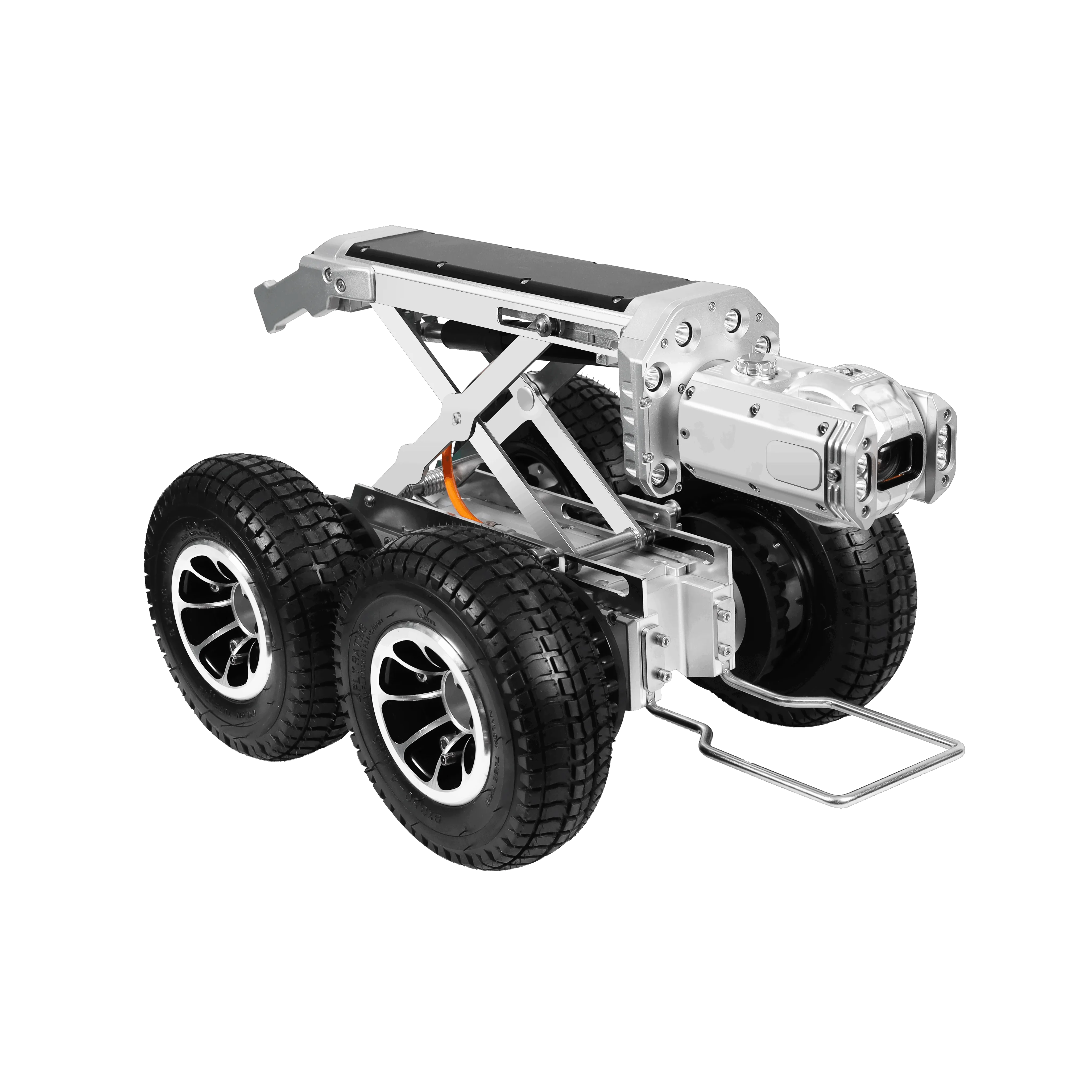

S190DHD Pipeline Inspection Robot

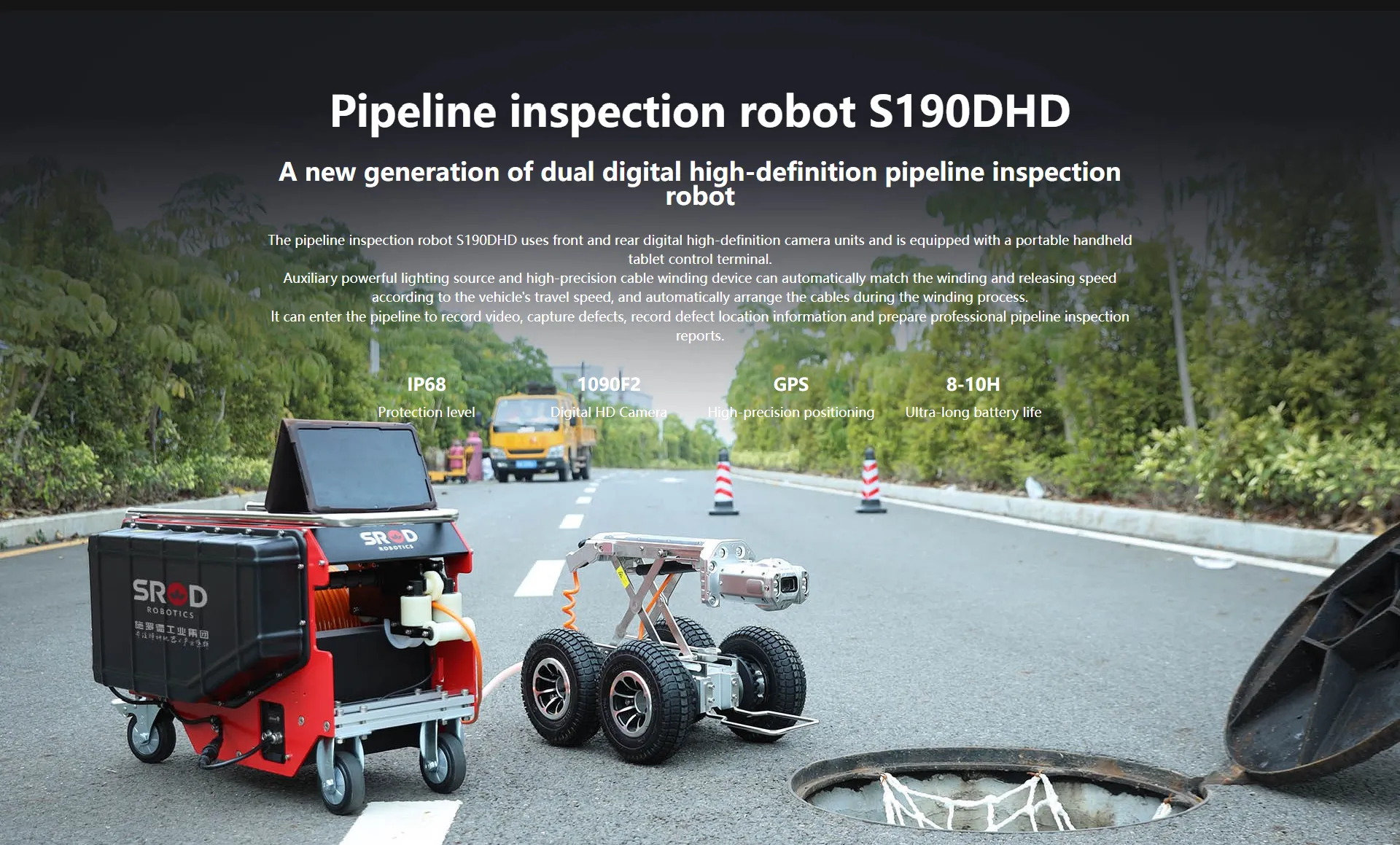

New Generation Dual Digital High-Definition Pipeline Inspection Robot

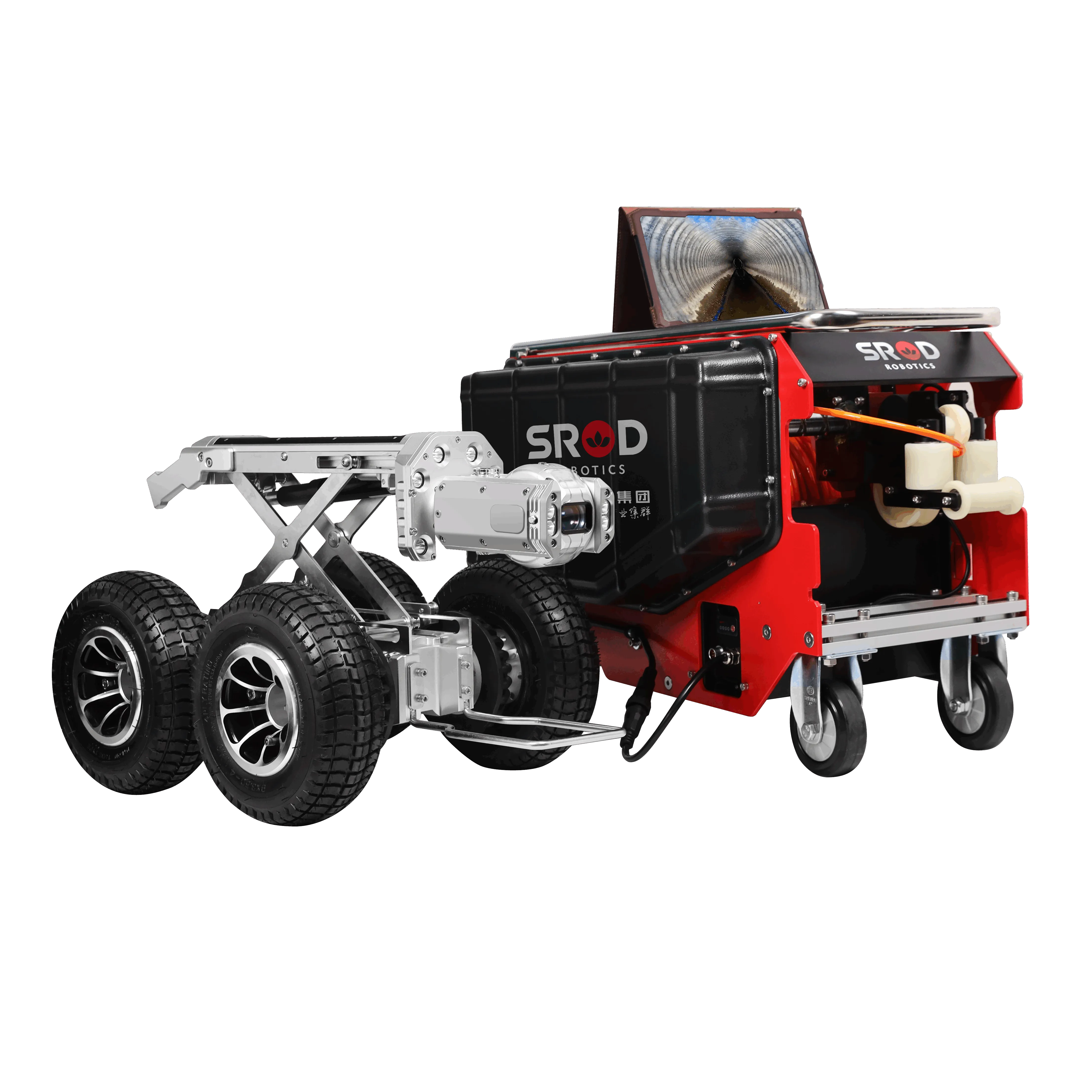

S190DHD Pipeline Inspection Robot adopts front and rear digital high-definition camera units and is equipped with a portable handheld tablet control terminal.It is equipped with a powerful auxiliary lighting source and a high-precision meter-counting cable winding device, which can automatically match the winding and unwinding speed according to the vehicle's travel speed, and automatically arrange the cable during the winding process.It can enter the pipeline to record video, capture defects, record defect location information, and generate professional pipeline inspection reports.

IP68
Protection Level

1090F2
Digital High-Definition Camera

GPS
High-Precision Positioning

8-10H
Ultra-Long Battery Life

S190DHD Pipeline Inspection Robot

New Generation Dual Digital High-Definition Pipeline Inspection Robot

IP68
Protection Level

1090F2
Digital High-Definition Camera

GPS
High-Precision Positioning

8-10H
Ultra-Long Battery Life

PRODUCT HIGHLIGHTS


New Camera System Upgrade Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality	Modular Compartment Design The S190DHD adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories	Tablet Wireless Control Handheld 10.8-inch tablet, easy to carry	Comprehensive Testing 360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted 230°, axial rotation can be automatically (manually) adjusted 360°


Automatic Cable Arrangement The speed of the wire collection can be automatically matched according to the vehicle's travel speed, and the wire collection process can be automatically arranged	Sealed Dust And Water Proof Technology More than ten years of experience in sports sealing and waterproofing technology, reaching IP68 protection level	Multiple Configurations Available S190DHD-A, S190DHD-B, S190DHD-C	Dual Digital High Definition Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition images

Technical Parameters

Scope Of Application DN200mm-3000mm	Lens Protection The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle Surmounting Ability Maximum climbing ability up to 40°	Protection Level IP68
Camera Unit Front and rear 210W digital HD cameras, 360° axial and 270° radial rotation	Drive Six-wheel drive, powerful horsepower, maximum load capacity up to 65kg
Zoom 10× optical, 16× digital	Reeling Method Electric wire reel, wire reel speed is synchronized with crawler body backward speed
Lifting Method "X" type electric lifting frame, with large lifting torque, can easily lift the equipment, lens lifting range 200mm	Cable Special tensile cable, standard 120m, customizable
Positioning With high-precision GPS positioning system, real-time positioning	Meter Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination High brightness LED Main light 8×2W, auxiliary light 6×3.5W	Anti-Rollover Design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width Measurement Optional laser width measurement function	Defogging With one-button defog function

PRODUCT HIGHLIGHTS


New Camera System Upgrade Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality	Automatic Cable Arrangement The speed of the wire collection can be automatically matched according to the vehicle's travel speed, and the wire collection process can be automatically arranged


Modular Compartment Design The S190DHD adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories	Sealed Dust And Water Proof Technology More than ten years of experience in sports sealing and waterproofing technology, reaching IP68 protection level


Tablet Wireless Control Handheld 10.8-inch tablet, easy to carry	Multiple Configurations Available S190DHD-A, S190DHD-B, S190DHD-C


Comprehensive Testing 360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted 230°, axial rotation can be automatically (manually) adjusted 360°	Dual Digital High Definition Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition images

Technical Parameters

Applicable Pipe Diameter DN200mm-3000mm	Lens Protection The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle Surmounting Ability 6Maximum climbing ability up to 40°	Protection Level IP68
Camera Unit Front and rear 210W digital HD cameras, 360° axial and 270° radial rotation	Drive Six-wheel drive, powerful horsepower, maximum load capacity up to 65kg
Zoom 10× optical, 16× digital	Reeling Method Electric wire reel, wire reel speed is synchronized with crawler body backward speed
Lifting Method "X" type electric lifting frame, with large lifting torque, can easily lift the equipment, lens lifting range 200mm	Cable Special tensile cable, standard 120m，customizable
Positioning With high-precision GPS positioning system, real-time positioning	Meter Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination High brightness LED Main light 8×2W, auxiliary light 6×3.5W	Anti-Rollover Design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width Measurement Optional laser width measurement function	Defogging With one-button defog function

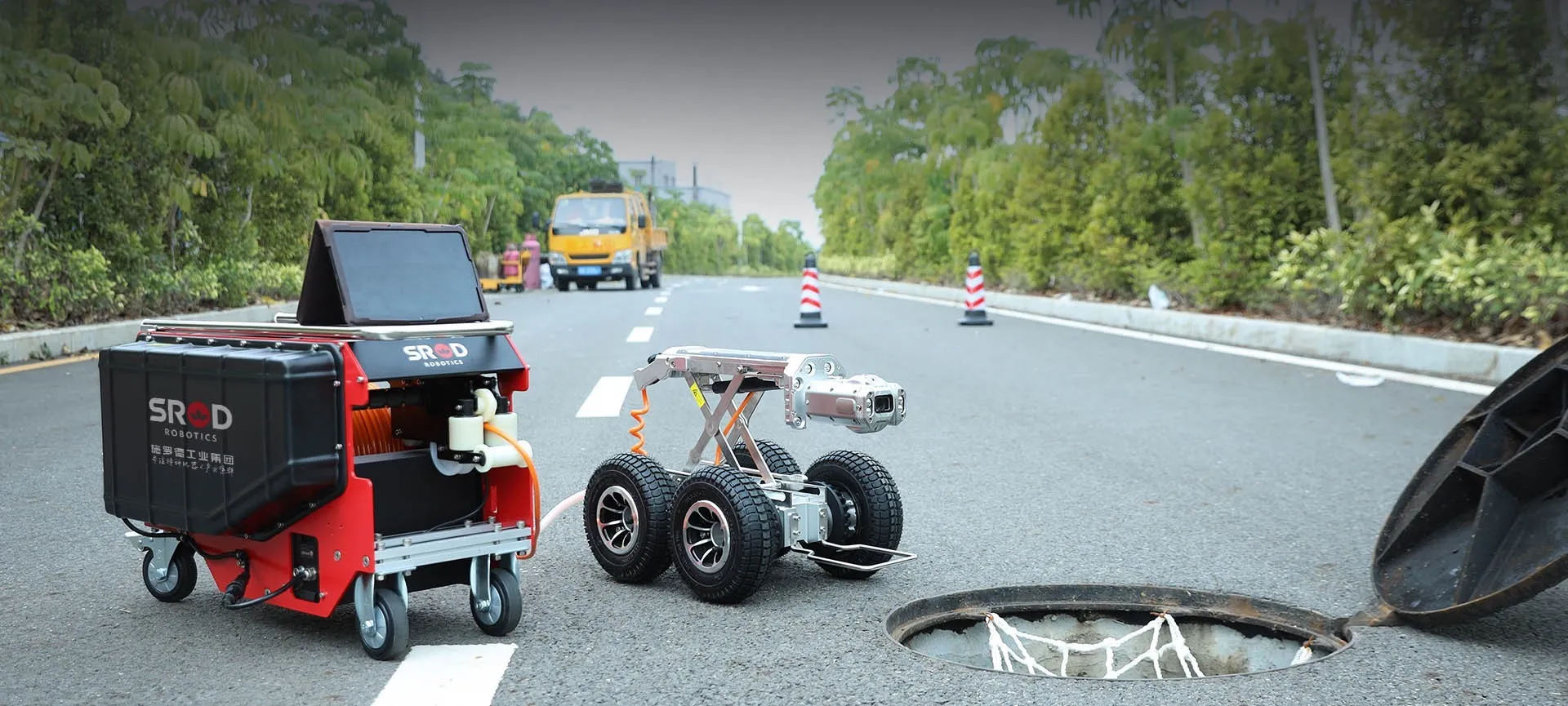

Application Scenario Cases
