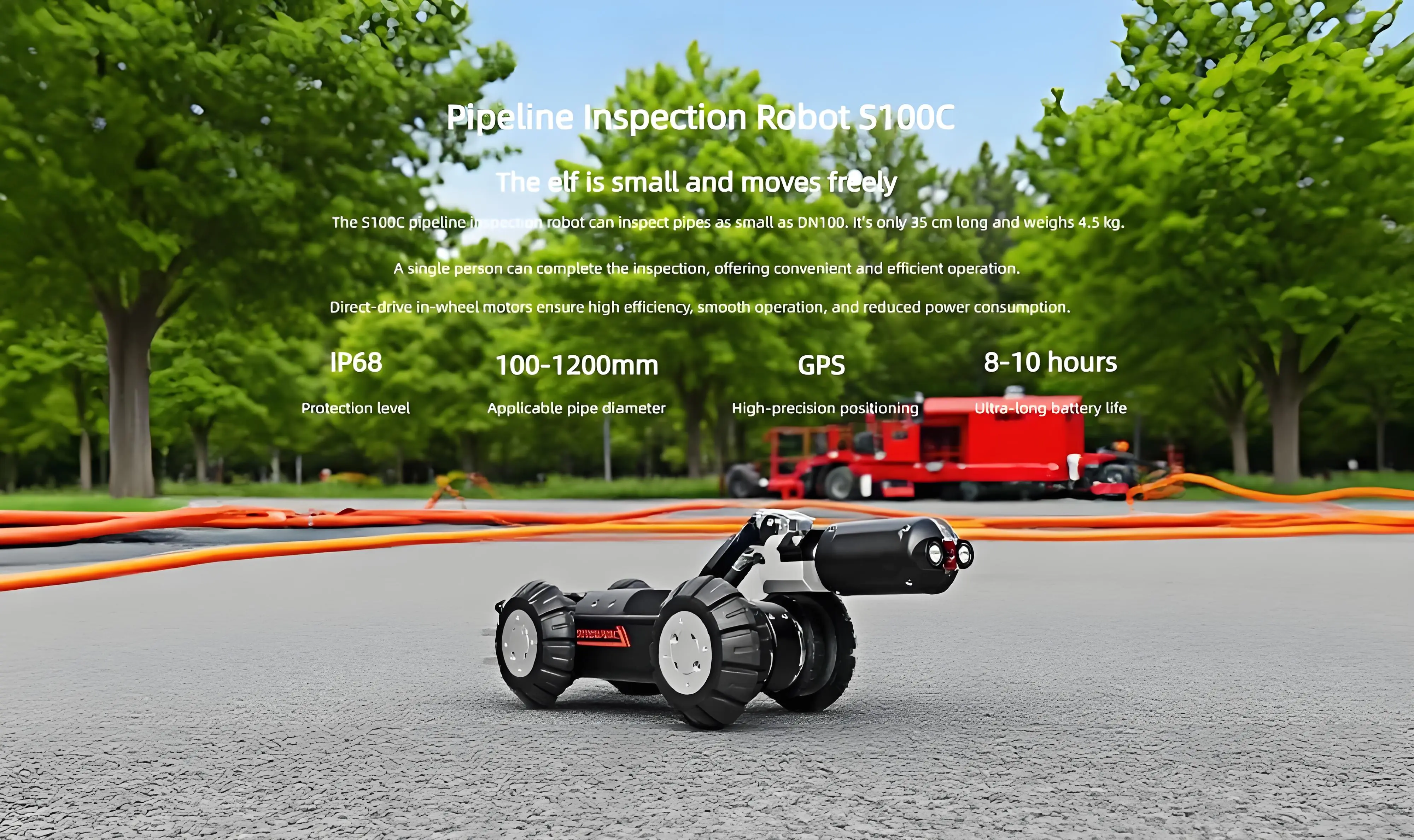

Technical Parameters









Scope of application
DN100mm-1200mm
Controller Type
Portable tablet termina
Obstacle surmounting ability
Not less than 30°
Protection level
IP68
Camera unit
Front 210W pixel digital high-definition camera, axial 360°, radial ±90° pitch
Drive
Four motor drive, powerful power
Zoom
10x optical, 16x digital camera
Reeling method
Automatic or manual wire reeling and unreeling, automatic wire arrangement
Lifting frame
Yes,the lens can be easily raised 50mm
Cables
Standard 120m
Positioning
With high-precision GPS positioning system, real-time positioning
Meter counting method
Absolute encoder, real-time distance display
illumination
Main light 2x1W
Auxiliary light 2×1W
Anti-rollover design
Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement
optional laser width measurement function
Defogging
Optional one-button defog function





Product Highlights

New camera system upgrade

Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality.

Modular compartment design

The S300E adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories.



Comprehensive testing

360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted 230°, axial rotation can be automatically (manually) adjusted 360°

Centimeter-level positioning

Centimeter-level high-precision meter device to accurately locate the robot's position



Sealed dust and water proof technology

More than ten years of experience in sports sealing and waterproofing technology, reaching IP68 protection level

Dual high-definition information collection

Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition images.





Technical Parameters

Scope of application
DN300mm-3000mm
Lens protection
The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle surmounting ability
Maximum climbing ability up to 45°
Protection level
IP68
Camera unit
Resolution: 1920*1080, 2.10W pixel non-delay high-definition camera
Drive
Six-wheel drive, powerful horsepower, maximum load capacity up to 50kg
Zoom
10× optical, 12× digital
Wire take-up vehicle
Built-in large-capacity lithium battery, can work continuously for 8-10 hours
Lifting method
Special "X" type electric lift, the lifting frame can reach up to 250mm
Cables
12-core special tensile cable, optional cable length 120~300m
Positioning
With high-precision GPS positioning system, real-time positioning
Meter
Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination
High brightness LED
8×2W
Anti-rollover design
Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement
With laser width measurement function
Defogging
With one-button defog function
