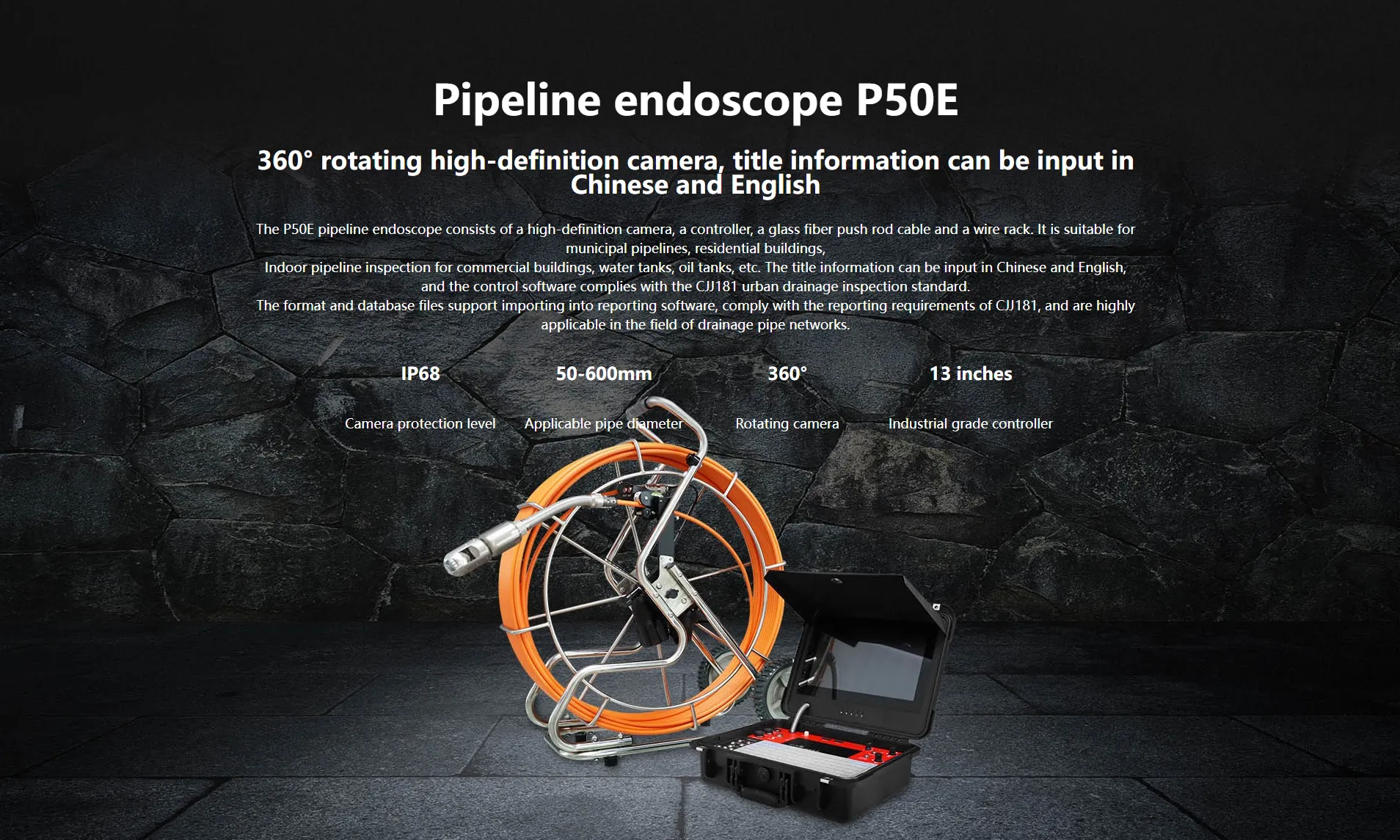

P50E Pipe Endoscope



360° rotating high-definition camera,intro information can be input in both Chinese and English

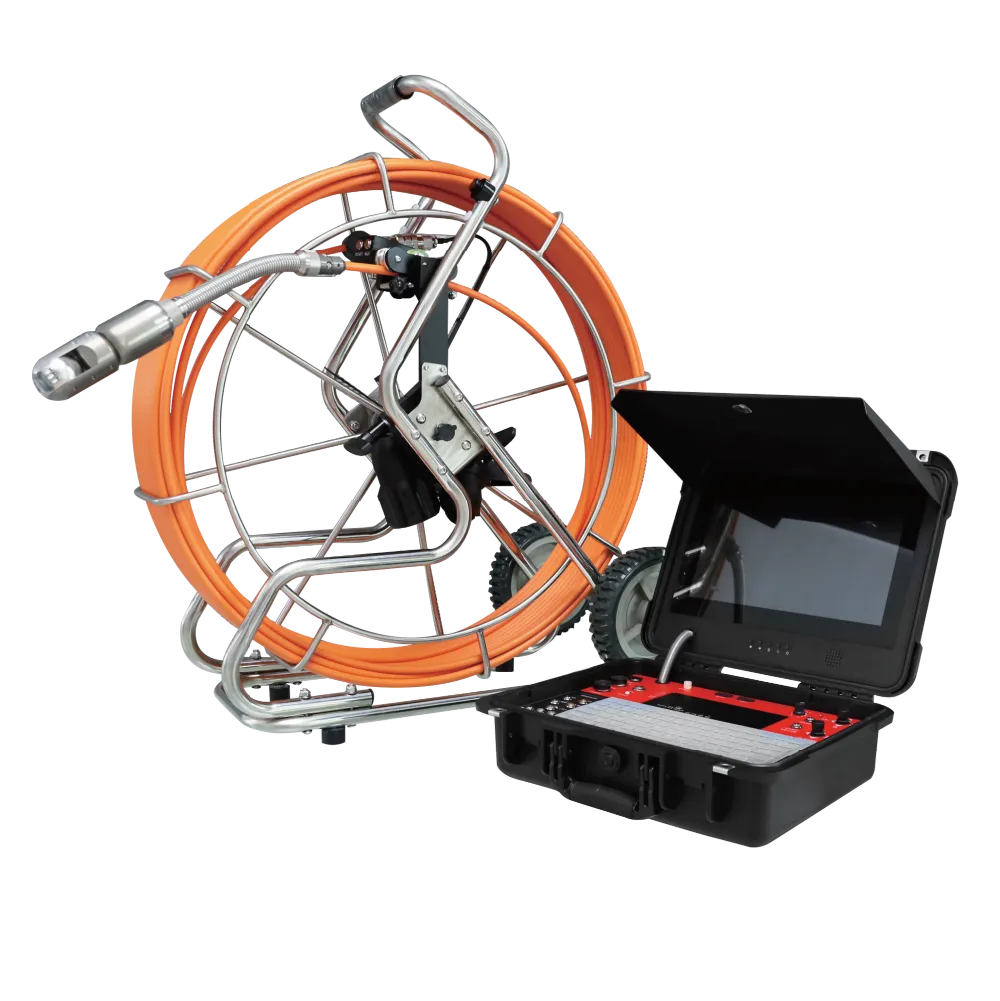

The P50E pipe endoscope consists of a high-definition camera, controller, fiberglass push rod cable, and cable tray. It is suitable for municipal pipelines and residential buildings with pipe diameters of DN50-600mm.Indoor piping inspection for commercial buildings, water tanks, oil tanks, etc. The intro information can be entered in both Chinese and English. The control software complies with the CJJ181 Urban Drainage Inspection Standard.The format and database files support importing into reporting software, meet the reporting requirements of CJJ181, and have extremely high applicability in the field of drainage pipe networks.



IP68
Camera Protection Level

50-600mm
Applicable Pipe Diameter

360°
Rotating Camera

13 Inches
Industrial-Grade Controller



P50E Pipe Endoscope



360° rotating high-definition camera,intro information can be input in both Chinese and English



The P50E pipe endoscope consists of a high-definition camera, controller, fiberglass push rod cable, and cable tray. It is suitable for municipal pipelines and residential buildings with pipe diameters of DN50-600mm.Indoor piping inspection for commercial buildings, water tanks, oil tanks, etc. The intro information can be entered in both Chinese and English. The control software complies with the CJJ181 Urban Drainage Inspection Standard.The format and database files support importing into reporting software, meet the reporting requirements of CJJ181, and have extremely high applicability in the field of drainage pipe networks.



IP68
Camera Protection Level

50-600mm
Applicable Pipe Diameter

360°
Rotating Camera

13 Inches
Industrial-Grade Controller

PRODUCT HIGHLIGHTS



Industrial-Grade Controller

Easily handles various complex environments, offering sustained stability and high reliability; dual-joystick gimbal operation ensures high control precision

Supports Importing Reports From Software

The format and database files support importing into reporting software and comply with the reporting requirements of CJJ181

Fiberglass Copper Coaxial Cable

Wear-resistant, corrosion-resistant, and strong bending resistance



Intro Information Can Be Input In Both Chinese And English

The control software complies with the CJJ181 Urban Drainage Testing Standard

360° Rotating High-Definition Camera

Sapphire lens protective glass, IP68 protection rating

6 Ultra-Bright LED Light Sources

Adjustable lighting, clear picture, and unobstructed view







Technical Parameters







Scope Of Application
DN50mm-600mm
Light Source
6 high brightness LEDs, adjustable light
Cable
60m Fiberglass Pole Cable
Camera Protection Level
IP68
Resolution
Video resolution 720P
Meter
Digital counter function, error less than 1%
Function
With audio, video recording and photo taking functions
Battery Life
Built-in 8800mA lithium-ion battery, can support 5-6 hours of continuous work
Rotation
180° tilt rotation, 360° pan infinite loop, support one-button reset
Display
13 inches





PRODUCT HIGHLIGHTS



Industrial-Grade Controller

Easily handles various complex environments, offering sustained stability and high reliability; dual-joystick gimbal operation ensures high control precision

Intro Information Can Be Input In Both Chinese And English

The control software complies with the CJJ181 Urban Drainage Testing Standard



Supports Importing Reports From Software

The format and database files support importing into reporting software and comply with the reporting requirements of CJJ181

360° Rotating High-Definition Camera

Sapphire lens protective glass, IP68 protection rating



Fiberglass Copper Coaxial Cable

Wear-resistant, corrosion-resistant, and strong bending resistance

6 Ultra-Bright LED Light Sources

Adjustable lighting, clear picture, and unobstructed view





Technical Parameters

Applicable Pipe Diameter
DN50mm-600mm
Light Source
6 high brightness LEDs, adjustable light
Cable
60m Fiberglass Pole Cable
Camera Protection Level
IP68
Resolution
Video resolution 720P
Meter
Digital counter function, error less than 1%
Function
With audio, video recording and photo taking functions
Battery Life
Built-in 8800mA lithium-ion battery, can support 5-6 hours of continuous work
Rotation
180° tilt rotation, 360° pan infinite loop, support one-button reset
Constant Depth Cruise
Can cruise underwater at a preset depth
Camera
On water: front and rear vision 210W, front and rear lights 2*2Weach; Underwater: front vision 210W, light 2*2W
Display
13 inches
