F100: Fully Autonomous Wind Turbine Blade Internal Inspection Robot

Focus On Embodied Intelligent Special-Purpose Robots Of Confined Spaces

PRODUCTS

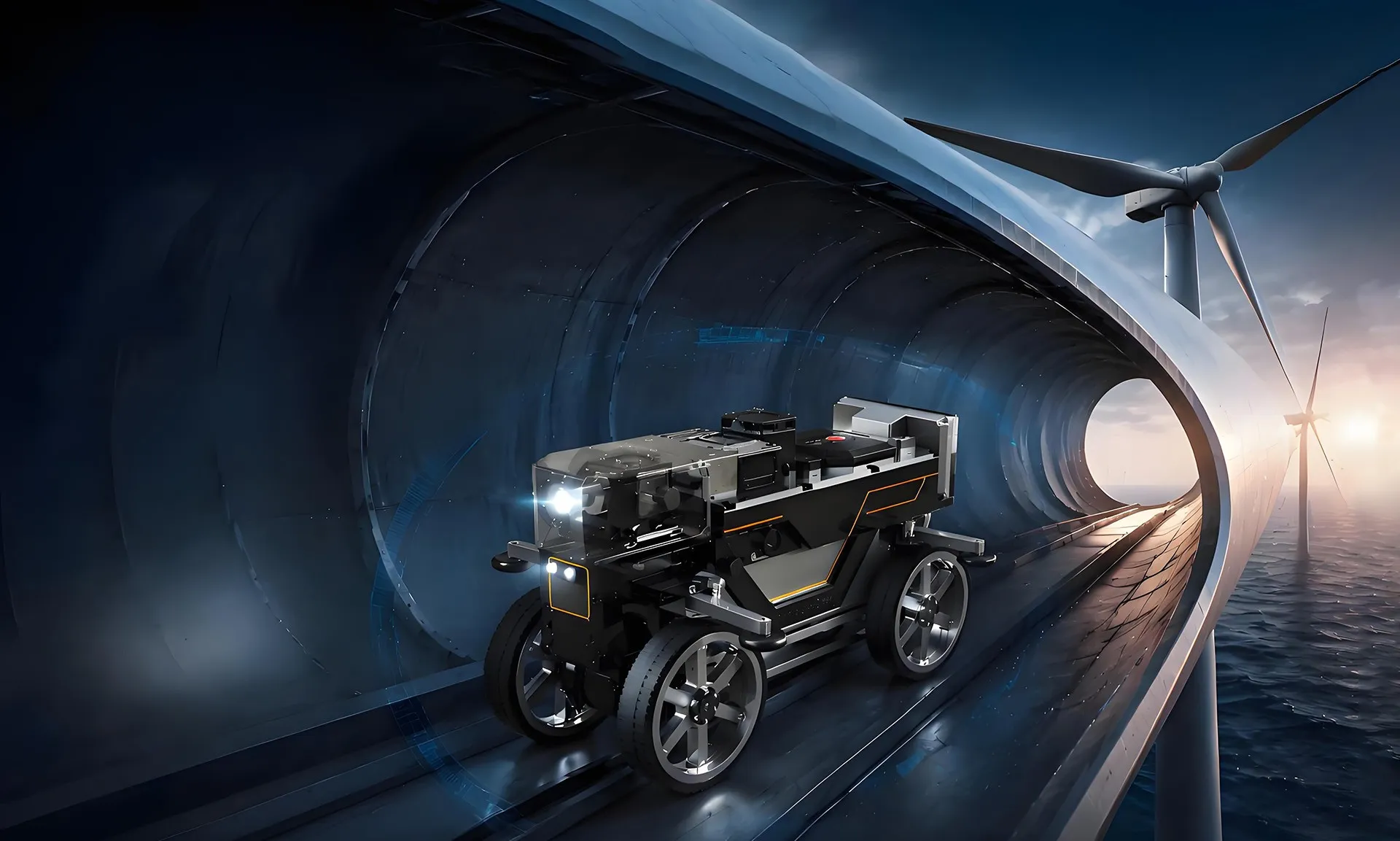

F100 Fully Autonomous Wind Turbine Blade Internal Inspection Robot

No Cable Tangling Restrictions, free And Efficient

The F100 is a disruptive and innovative testing device designed specifically for the wind power industry. It deeply integrates robotics, AI, and wireless communication technologies to effectively solve the problems of traditional blade inspection.Overcoming the pain points of low efficiency and high operational risks, it can autonomously perform endoscopic inspections of blades, accurately identifying various defects such as bulges, wrinkles, delamination, and cracks inside the blades.Provides fully autonomous and intelligent quality control and operation and maintenance solutions.

＜11kg
Robot Body Weight

≥ 30°
Maximum Climbing Ability

≥10cm
Obstacle Surmounting Ability

150m
Long-Distance Wireless Communication

F100 Fully Autonomous Wind Turbine Blade Internal Inspection Robot

No Cable Tangling Restrictions, free And Efficient

＜11kg
Robot Body Weight

≥30°
Maximum Climbing Ability

≥10cm
Obstacle Surmounting Ability

150m
Long-Distance Wireless Communication

PRODUCT HIGHLIGHTS


Intelligence: Autonomous & Precise -Fully Autonomous Movement: Auto navigation, obstacle avoidance/clearance, and auto-homing post-inspection without manual piloting -Fully Automated Filming: No manual triggering required -AI Defect Recognition: Dramatically eclipses manual inspection efficiency -Automated Reporting: One-click generation of inspection reports	3D Modeling: Digital Twin -Proprietary Module: Performs autonomous navigation while generating internal 3D blade models -Future-Proof: Upcoming software updates will support multi-compartment 3D model stitching and automated defect quantification	Wireless: Freedom and Efficiency -Stable Link: 150 m long-range wireless communication -Cut the Cord: Wireless link completely eliminates cable tangles and heavy reel hauling -Rapid Deployment: Zero time spent laying or retrieving cables


360° Panoramic Reconstruction: Zero Blind Spots -Full spatial coverage :With zero blind spots -Image Restoration:Seamless, true-to-life imaging with controlled distortion -Full Scene Retention: Supports multi-angle playback review	Lightweight: Ultra Portable -Ultra-Lightweight: Vehicle Weight＜11kg(inc. battery) -Highly Integrated: Total package weight ＜16kg -Single-Operator: Ready out of the box, effortless deployment	High Performance: Full Coverage -Obstacle clearance: 10 cm capability, overcoming virtually all internal barriers -Climbing: Inspects on 30° slopes and under Y-lock states -Anti-Rollover: Traverses 45° inclines (with wide wheels) -Easily passes through ultra-narrow 20 cm internal clearances/manway

Technical Parameters

Total Weight Of The Machine <11kg (including battery)	Inspection Time 100-meter blades can be inspected in 5 minutes
Climbing Ability ≥30° (Still detectable under Y-type lock machine)	Fully Autonomous Movement Auto navigation, obstacle avoidance/clearance, and auto-homing post-inspection without manual piloting
Camera Unit 360° Panoramic Camera: 5-megapixel image-stabilized lens, supports zoom shooting on leaf tips	Fully Automated Filming No manual triggering required
Intelligent lighting System The lighting adjusts automatically, ensuring clear shots from above and preventing overexposure in close-up shots	AI Defect Recognition Dramatically eclipses manual inspection efficiency
Anti-Rollover ≥30° (can travel stably on inclined blades, and can travel stably on a 45° incline with wide wheels)	Automatic Report Generate test report with one click
Battery Life Single battery ≥ 3 hours	360° Panoramic Restoration Panoramic, no-blind-spot capture of the blade's internal cavity; playback can be viewed from any angle
Positioning Accuracy Error ≤10cm/100m	3D Modeling Proprietary Module: Performs autonomous navigation while generating internal 3D blade models
Wireless Communication Distance ≥150 m, covering the deepest part of the blades (eliminating the pain of cable tangling and cable cart handling)	Temperature -10℃ ~ 60℃; Safety: Lithium iron phosphate battery, ensuring safety

PRODUCT HIGHLIGHTS


Intelligence: Autonomous & Precise -Fully Autonomous Movement: Auto navigation, obstacle avoidance/clearance, and auto-homing post-inspection without manual piloting -Fully Automated Filming: No manual triggering required -AI Defect Recognition: Dramatically eclipses manual inspection efficiency -Automated Reporting: One-click generation of inspection reports	360° Panoramic Reconstruction: Zero Blind Spots -Full spatial coverage :With zero blind spots -Image Restoration:Seamless, true-to-life imaging with controlled distortion -Full Scene Retention: Supports multi-angle playback review


3D Modeling: Digital Twin -Proprietary Module: Performs autonomous navigation while generating internal 3D blade models -Future-Proof: Upcoming software updates will support multi-compartment 3D model stitching and automated defect quantification	Lightweight: Ultra Portable -Ultra-Lightweight: Vehicle Weight＜11kg(inc. battery) -Highly Integrated: Total package weight ＜16kg -Single-Operator: Ready out of the box, effortless deployment


Wireless: Freedom and Efficiency -Stable Link: 150 m long-range wireless communication -Cut the Cord: Wireless link completely eliminates cable tangles and heavy reel hauling -Rapid Deployment: Zero time spent laying or retrieving cables	High Performance: Full Coverage -Obstacle clearance: 10 cm capability, overcoming virtually all internal barriers -Climbing: Inspects on 30° slopes and under Y-lock states -Anti-Rollover: Traverses 45° inclines (with wide wheels) -Easily passes through ultra-narrow 20 cm internal clearances/manway

Technical Parameters

Total Weight Of The Machine <11kg (including battery)	Inspection Time 100-meter blades can be inspected in 5 minutes
Climbing Ability ≥30° (Still detectable under Y-type lock machine)	Fully Autonomous Movement Auto navigation, obstacle avoidance/clearance, and auto-homing post-inspection without manual piloting
Camera Unit 360° Panoramic Camera: 5-megapixel image-stabilized lens, supports zoom shooting on leaf tips	Fully Self-Produced No manual photography required
Intelligent lighting System The lighting adjusts automatically, ensuring clear shots from above and preventing overexposure in close-up shots	AI Defect Recognition Dramatically eclipses manual inspection efficiency
Anti-Rollover ≥30° (can travel stably on inclined blades, and can travel stably on a 45° incline with wide wheels)	Automatic Report Generate test report with one click
Battery Life Single battery ≥ 3 hours	360° Panoramic Restoration Panoramic, no-blind-spot capture of the blade's internal cavity; playback can be viewed from any angle
Positioning Accuracy Error ≤10cm/100m	3D Modeling Proprietary Module: Performs autonomous navigation while generating internal 3D blade models
Wireless Communication Distance ≥150 m, covering the deepest part of the blades (eliminating the pain of cable tangling and cable cart handling)	Temperature -10℃ ~ 60℃; Safety: Lithium iron phosphate battery, ensuring safety

Application Scenario Cases

Application Scenario Cases
