E30CHDW Pipe periscope: High - Quality and Versatile Pipe Periscope

PRODUCTS

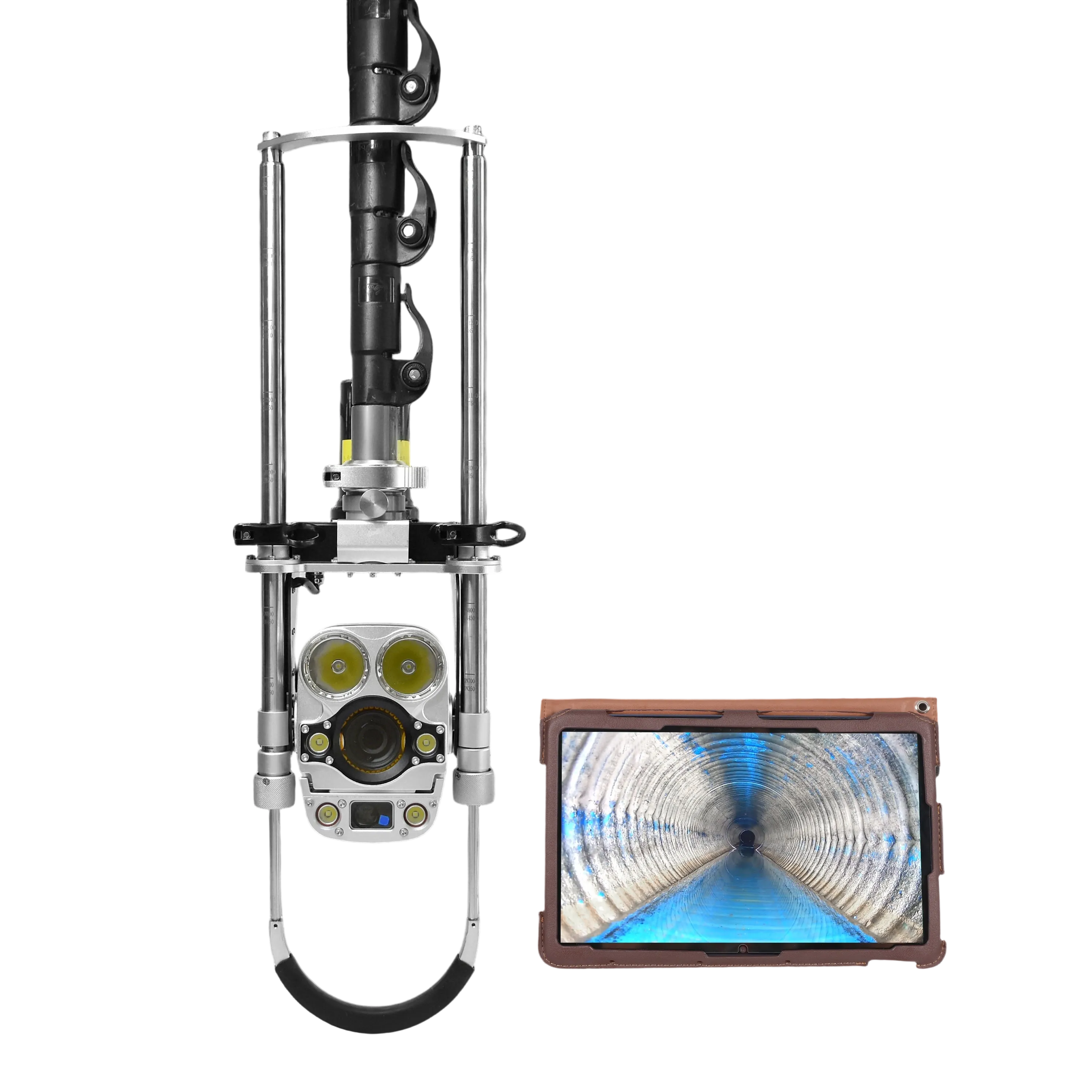

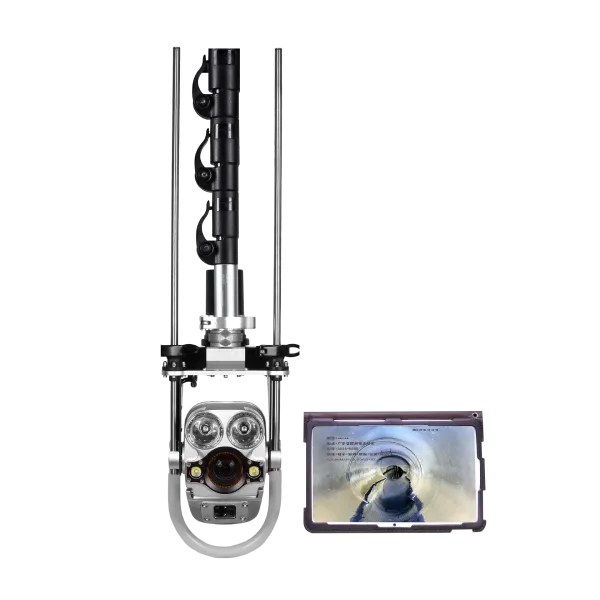

E30CHDW Pipe Periscope

30× optical zoom reveals even the smallest faults

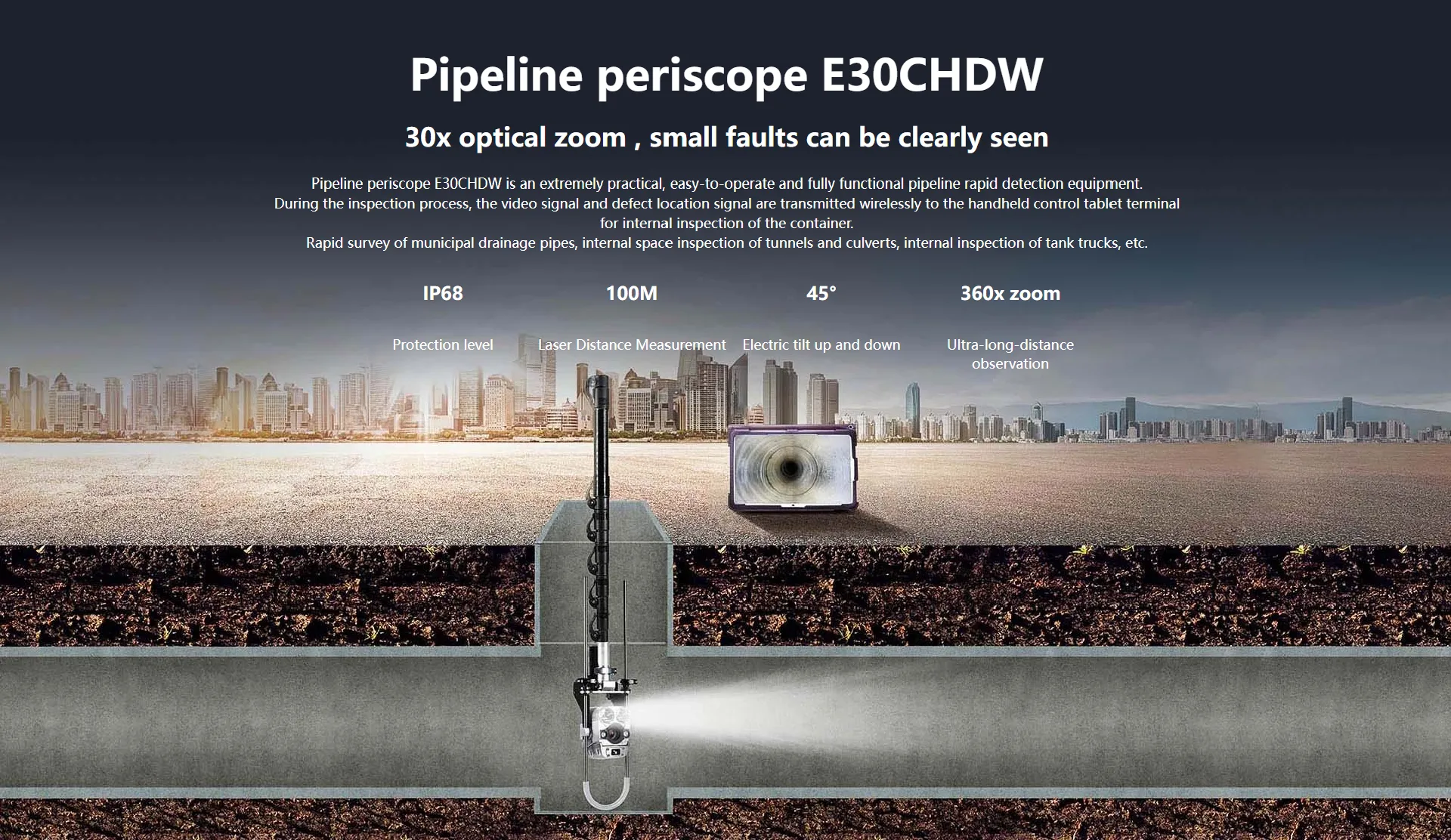

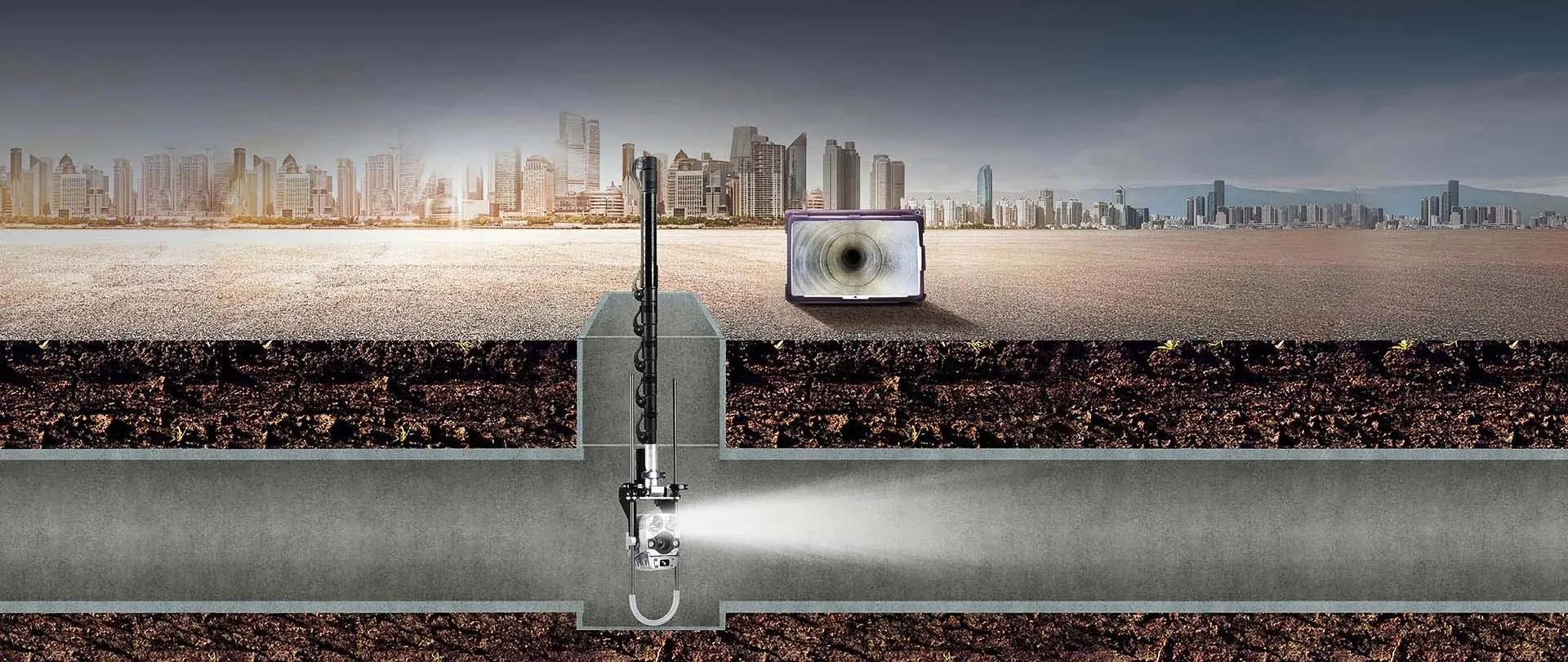

The Pipeline Periscope - E30CHDW is an extremely practical, easy-to-operate, and fully functional rapid pipeline inspection device.During the inspection process, video signals and defect location signals are wirelessly transmitted to a handheld control tablet terminal for internal inspection of the container.Rapid surveying of municipal drainage pipelines, internal space inspection of tunnels and culverts, and internal inspection of tank trucks, etc.

IP68
Protection Level

100m
Laser Ranging

45°
Electric Pitch Up And Down

360×Zoom
Ultra-Long Distance Observation

E30CHDW Pipe Periscope

30× optical zoom reveals even the smallest faults

The Pipeline Periscope - E30CHDW is an extremely practical, easy-to-operate, and fully functional rapid pipeline inspection device.During the inspection process, video signals and defect location signals are wirelessly transmitted to a handheld control tablet terminal for internal inspection of the container.Rapid surveying of municipal drainage pipelines, internal space inspection of tunnels and culverts, and internal inspection of tank trucks, etc.

IP68
Protection Level

100m
Laser Ranging

45°
Electric Pitch Up And Down

360×Zoom
Ultra-Long Distance Observation

PRODUCT HIGHLIGHTS


High-Definition Pan-Tilt Camera 1920×1080 (2.1 million pixels)	Wireless Single-Mode Communication Equipped with high-definition Wi-Fi wireless transmission technology, tablet control, and easy operation	Ultra-Long Distance Observation 360× zoom (30× optical ×12× electronic), uniform image quality, and long viewing distance


High-Precision Laser Ranging With a large range and millimeter-level error, it can quickly determine the distance of a defect location from the wellhead	Electric Pitch Electric tilt up and down 45°, one-button reset	Sealed Dustproof And Waterproof Technology IP68 protection rating, with one-button defogging function

Technical Parameters

Scope Of Application DN100mm-2000mm	Light Source High brightness intelligent composite light source
Electric Defog Software controlled defog	Tilt Detection Automatic detection, correction accuracy 0.5°
Resolution 1920×1080, approximately 210W pixels	Zoom 360×(30× optical, 12× digital)
Communication Wireless Communications	Laser Distance Measurement Range: 100m, error: ±1cm
Rotation Angle 45° up and down	Protection Level IP68
U-Shaped Probe With U-shaped probe with scale	Telescopic Rod With anti-drop function, standard configuration: 7m, optional length: 9m, 12m

PRODUCT HIGHLIGHTS


High-Definition Pan-Tilt Camera 1920×1080 (2.1 million pixels)	High-Precision Laser Ranging With a large range and millimeter-level error, it can quickly determine the distance of a defect location from the wellhead


Wireless Single-Mode Communication Equipped with high-definition Wi-Fi wireless transmission technology, tablet control, and easy operation	Electric Pitch Electric tilt up and down 45°, one-button reset


Ultra-Long Distance Observation 360× zoom (30× optical ×12× electronic), uniform image quality, and long viewing distance	Sealed Dustproof And Waterproof Technology IP68 protection rating, with one-button defogging function

Technical Parameters

Applicable Pipe Diameter DN150mm-2000mm	Light Source High brightness intelligent composite light source
Electric Defog Software controlled defog	Tilt Detection Automatic detection, correction accuracy 0.5°
Resolution 1920×1080, approximately 210W pixels	Zoom 360×(30× optical, 12× digital)
Communication Wireless Communications	Laser Distance Measurement Range: 100m, error: ±1cm
Rotation Angle 45° up and down	Protection Level IP68
U-Shaped Probe With U-shaped probe with scale	Telescopic Rod With anti-drop function, standard configuration: 7m, optional length: 9m, 12m
