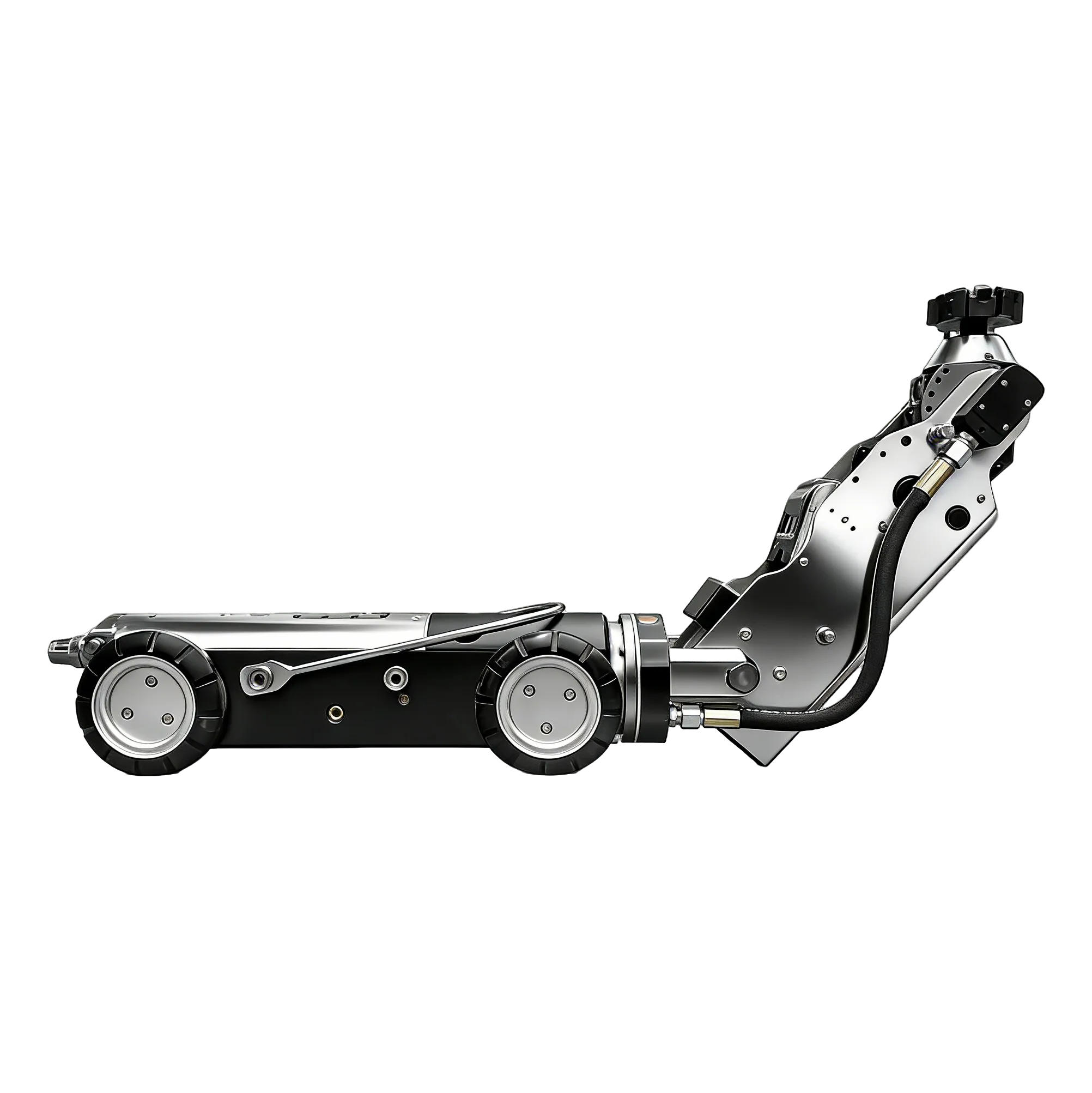

T200 Pipe Cutting Robot

Heavy-Duty Pneumatic UV-CIPP Lateral Reinstatement Cutter

The T200 Pipeline Cutting Robot, equipped with a high-torque pneumatic cutting motor, a high-definition color imaging unit, and interchangeable cutting/grinding heads, is an intelligent pipeline rehabilitation system precisely engineered for pipe diameters ranging from DN200mm to 800mm.Powered by an ultra-heavy-duty pneumatic motor, the system delivers the robust performance required to rapidly clear severe internal obstructions, including protruding tree roots, rebar intrusions, heavy mineral encrustations, concrete grouting blocks, blind lateral connections, and solid blockages. Additionally, the T200 serves as an essential tool for lateral reinstatement (re-opening lateral connections) following UV-Cured-In-Place-Pipe (CIPP) lining rehabilitation.

IP68
Protection Level

200-800mm
Pipe Diameter Range

70kg
Robot Body

60m
Cable Length

T200 Pipe Cutting Robot

Heavy-Duty Pneumatic UV-CIPP Lateral Reinstatement Cutter

The T200 Pipeline Cutting Robot, equipped with a high-torque pneumatic cutting motor, a high-definition color imaging unit, and interchangeable cutting/grinding heads, is an intelligent pipeline rehabilitation system precisely engineered for pipe diameters ranging from DN200mm to 800mm.Powered by an ultra-heavy-duty pneumatic motor, the system delivers the robust performance required to rapidly clear severe internal obstructions, including protruding tree roots, rebar intrusions, heavy mineral encrustations, concrete grouting blocks, blind lateral connections, and solid blockages. Additionally, the T200 serves as an essential tool for lateral reinstatement (re-opening lateral connections) following UV-Cured-In-Place-Pipe (CIPP) lining rehabilitation.

IP68
Protection Level

200-800mm
Pipe Diameter Range

70kg
Robot Body

60m
Cable Length

Product Highlights


High Power Powerful pneumatic cutting motor, offering high concrete cutting efficiency among similar international products	High Flexibility The cutting arm can rotate axially and radially, and the pneumatic motor joint can also rotate	Portable Cable Reel The cable reel features a portable design, making it easy to move to the next work location


Heavy-Duty Cutting Head Capable of removing various pipe blockages such as concrete, rebar, plastic, and tree roots	Precision Control Uses a high-precision joystick to precisely control cutting and grinding operations, avoiding damage to the pipe wall	Self-Cleaning Color Camera Unit The wiper blade can self-clean during operation, ensuring clear images

Technical Parameters

Scope Of Application DN200mm-800mm (DN600mm and above need to install the matching expansion chassis)	Protection Level IP68
Size And Weight Robot body: 1050mm (L) x180mm (Φ), weight 75KG; cable winch: 820x670x1030mm, weight 115kg	Main Application Remove obstacles inside the pipeline, such as tree roots, cement, stones, and branch pipe blind connections; Pretreatment of water supply and drainage pipelines before CIPP trenchless repair
Portable Cable Winch Built-in 100-meter integrated gas, electricity and cooling water supply cables; automatic cable arrangement, pneumatic or hydraulic (customizable) automatic cable retraction and release	Optional Functions Video recording, STL branch pipe cutting and polishing robot combination, pipeline local repair parts
Supporting Equipment Requirements Air compressor: 3m³/min, 10bar, including condenser, water vapor separation, oil and gas separation, can provide 5-40℃ dry compressed air; Power supply: 220V, 50Hz AC	Cutting Head One diamond mixture cutting head is standard, which can be used for cutting and grinding concrete and stone blocks; one steel brush head is standard, which can be used for removing thin tree roots; PVC plastic/CIPP liner pipe cutting head, steel bar grinding wheel, cutting disc fixing fixture, and head extension rod are optional
Robotic Arm The all-round high-degree-of-freedom robotic arm can rotate 400° axially, lift 90° radially, and the pneumatic motor joint can rotate 90°; it can be expanded and installed with a mini robotic arm for cutting and grinding pipe branch joints; dual rockers are used to accurately control the rotation movement	Robot Body Includes a complete set of widened bushings, suitable for pipes from DN200 to DN600

Product Highlights


High Power Powerful pneumatic cutting motor, offering high concrete cutting efficiency among similar international products	High Flexibility The cutting arm can rotate axially and radially, and the pneumatic motor joint can also rotate	Portable Cable Reel The cable reel features a portable design, making it easy to move to the next work location


Heavy-Duty Cutting Head Capable of removing various pipe blockages such as concrete, rebar, plastic, and tree roots	Precision Control Uses a high-precision joystick to precisely control cutting and grinding operations, avoiding damage to the pipe wall	Self-Cleaning Color Camera Unit The wiper blade can self-clean during operation, ensuring clear images

Technical Parameters

Scope Of Application DN200mm-800mm (DN600mm and above need to install the matching expansion chassis)	Protection Level IP68
Size And Weight Robot body: 1050mm (L) x180mm (Φ), weight 75KG; cable winch: 820x670x1030mm, weight 115kg	Main Application Remove obstacles inside the pipeline, such as tree roots, cement, stones, and branch pipe blind connections; Pretreatment of water supply and drainage pipelines before CIPP trenchless repair
Portable Cable Winch Built-in 100-meter integrated gas, electricity and cooling water supply cables; automatic cable arrangement, pneumatic or hydraulic (customizable) automatic cable retraction and release	Optional Functions Video recording, STL branch pipe cutting and polishing robot combination, pipeline local repair parts
Supporting Equipment Requirements Air compressor: 3m³/min, 10bar, including condenser, water vapor separation, oil and gas separation, can provide 5-40℃ dry compressed air; Power supply: 220V, 50Hz AC	Cutting Head One diamond mixture cutting head is standard, which can be used for cutting and grinding concrete and stone blocks; one steel brush head is standard, which can be used for removing thin tree roots; PVC plastic/CIPP liner pipe cutting head, steel bar grinding wheel, cutting disc fixing fixture, and head extension rod are optional
Robotic Arm The all-round high-degree-of-freedom robotic arm can rotate 400° axially, lift 90° radially, and the pneumatic motor joint can rotate 90°; it can be expanded and installed with a mini robotic arm for cutting and grinding pipe branch joints; dual rockers are used to accurately control the rotation movement	Robot Body Includes a complete set of widened bushings, suitable for pipes from DN200 to DN600
