D800F Dredging Robot
Specialized Centrifugal + Screw Dual-Fusion Sewage Pump

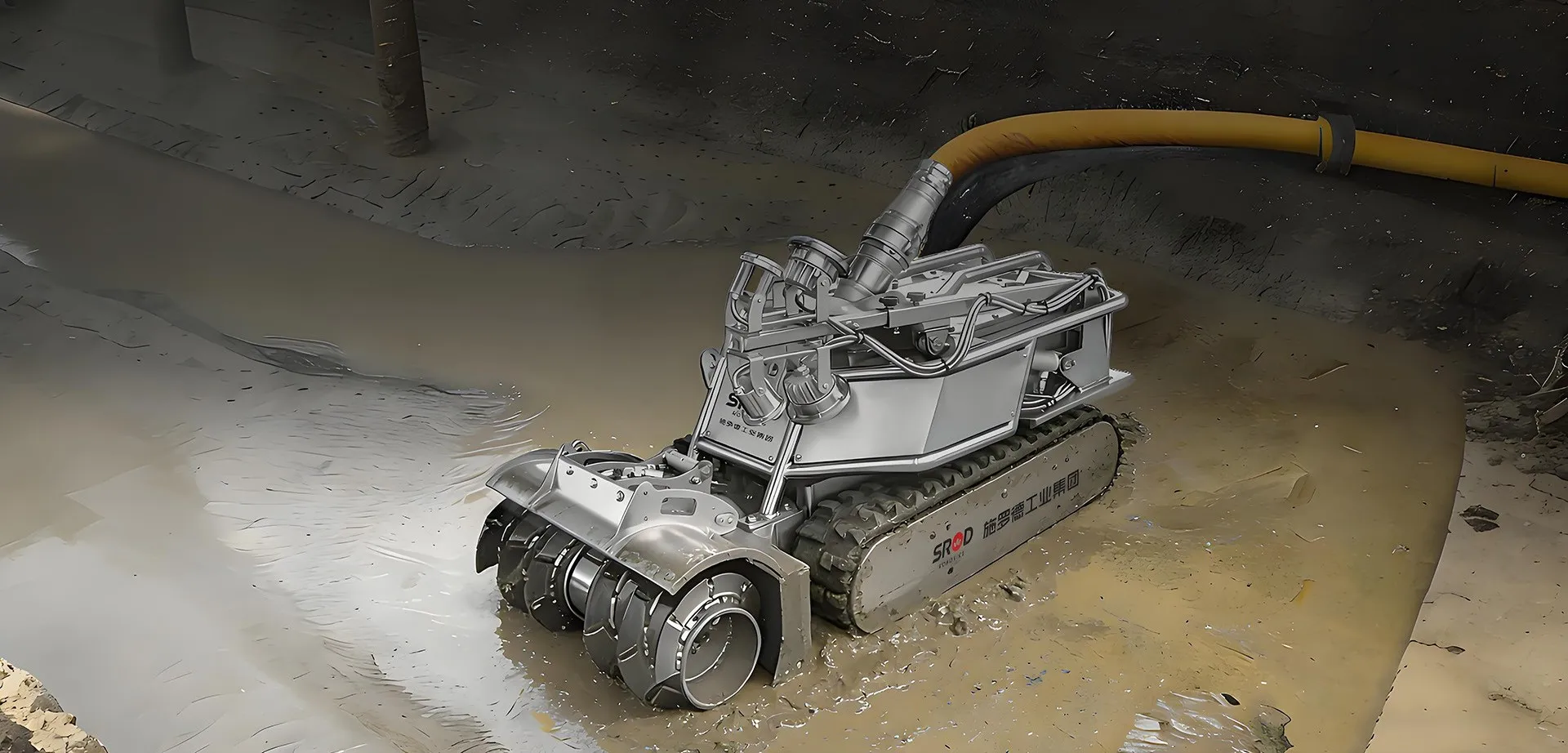

The SROD D800F dredging robot is capable of operating within conduits with a diameter of DN800 or larger, offering specialized confined-space operational characteristics characterized by comprehensive coverage, high maneuverability, and exceptional efficiency.Suitable for non-explosion-proof confined spaces such as sewage treatment plant sedimentation tanks, filtration basins, inverted siphons, sludge-accumulated storage tanks, hazardous chemical wastewater pools, river/lake/reservoir bed sediments, pump station culverts, underground rivers, and cooling towers (explosion-proof versions available upon request).Equipped with professional capabilities for desilting, hazard mitigation, and emergency repairs, the system allows for uninterrupted operation without the need to shut off water supply. It functions stably in submerged environments at depths of up to 20 meters, achieving a desilting efficiency of up to 200 m³/h with a maximum discharge head of 40 meters.Standard configuration includes an integrated electric hydraulic power unit for efficient and worry-free operation; an optional diesel-powered split hydraulic power unit is also available, eliminating reliance on mains power and significantly expanding applicability, especially suitable for power-constrained scenarios such as remote areas, temporary construction, and emergency rescue.
|
|
D800F Dredging Robot
Specialized Centrifugal + Screw Dual-Fusion Sewage Pump
The SROD D800F dredging robot is capable of operating within conduits with a diameter of DN800 or larger, offering specialized confined-space operational characteristics characterized by comprehensive coverage, high maneuverability, and exceptional efficiency.Suitable for non-explosion-proof confined spaces such as sewage treatment plant sedimentation tanks, filtration basins, inverted siphons, sludge-accumulated storage tanks, hazardous chemical wastewater pools, river/lake/reservoir bed sediments, pump station culverts, underground rivers, and cooling towers (explosion-proof versions available upon request).Equipped with professional capabilities for desilting, hazard mitigation, and emergency repairs, the system allows for uninterrupted operation without the need to shut off water supply. It functions stably in submerged environments at depths of up to 20 meters, achieving a desilting efficiency of up to 200 m³/h with a maximum discharge head of 40 meters.Standard configuration includes an integrated electric hydraulic power unit for efficient and worry-free operation; an optional diesel-powered split hydraulic power unit is also available, eliminating reliance on mains power and significantly expanding applicability, especially suitable for power-constrained scenarios such as remote areas, temporary construction, and emergency rescue.
|
PRODUCT HIGHLIGHTS
 |
 |
 |
|
High-Pressure Hydraulic Output | Traction Force Up To 5000N, strong Mobility And High Efficiency Can perform multiple actions simultaneously, including suction, movement, and oscillation; other competing products cannot match this hydraulic power and may not be able to perform multiple actions simultaneously |
Military-Grade Deep-Water Protection | IP68 · 20m Underwater Suitable for submerged environments such as deep wells and sedimentation tanks in pumping stations, with key components featuring military-grade waterproof sealing design |
Visual Remote Control | Automatic Lifting Lighting + Camera System The automatic lifting lighting unit flexibly adjusts the viewing angle according to the scene, providing real-time feedback of front and rear images, reducing congestion and rework caused by blind operation |
 |
 |
 |
|
High Head And Large Flow Rate | Maximum Output Flow Rate 200m³/h, head 40m High-performance centrifugal + screw dual-technology dredging pump, stable and compliant performance in actual testing, meeting the needs of high-intensity conveying |
Passability And Adaptability | Particle Size ≤ 40mm The cavity is wear-resistant and reinforced, and the cavity structure is optimized, making it less prone to clogging when containing sand or impurities, and improving its throughput |
Integrated Delivery | Power Station + Hose Hoist + Electrical Control Integration Standardized modules are ready to use upon arrival, with a more compact size and easier transportation; less on-site assembly, wiring, and debugging, leading to faster deployment and reduced safety risks |
|
Technical Parameter
|
|
PRODUCT HIGHLIGHTS
|
|
|
High-Pressure Hydraulic Output | Traction Force Up To 5000N, strong Mobility And High Efficiency Can perform multiple actions simultaneously, including suction, movement, and oscillation; other competing products cannot match this hydraulic power and may not be able to perform multiple actions simultaneously |
High Head And Large Flow Rate | Maximum Output Flow Rate 200m³/h, head 40m High-performance centrifugal + screw dual-technology dredging pump, stable and compliant performance in actual testing, meeting the needs of high-intensity conveying |
|
|
|
Military-Grade Deep-Water Protection | IP68 · 20m Underwater Suitable for submerged environments such as deep wells and sedimentation tanks in pumping stations, with key components featuring military-grade waterproof sealing design |
Passability And Adaptability | Particle Size ≤ 40mm The cavity is wear-resistant and reinforced, and the cavity structure is optimized, making it less prone to clogging when containing sand or impurities, and improving its throughput |
|
|
|
Visual Remote Control | Automatic Lifting Lighting + Camera System The automatic lifting lighting unit flexibly adjusts the viewing angle according to the scene, providing real-time feedback of front and rear images, reducing congestion and rework caused by blind operation |
Integrated Delivery | Power Station + Hose Hoist + Electrical Control Integration Standardized modules are ready to use upon arrival, with a more compact size and easier transportation; less on-site assembly, wiring, and debugging, leading to faster deployment and reduced safety risks |
Technical Parameters
Application Scenario Cases
 |
 |
 |
 |
 |
 |
Application Scenario Cases
