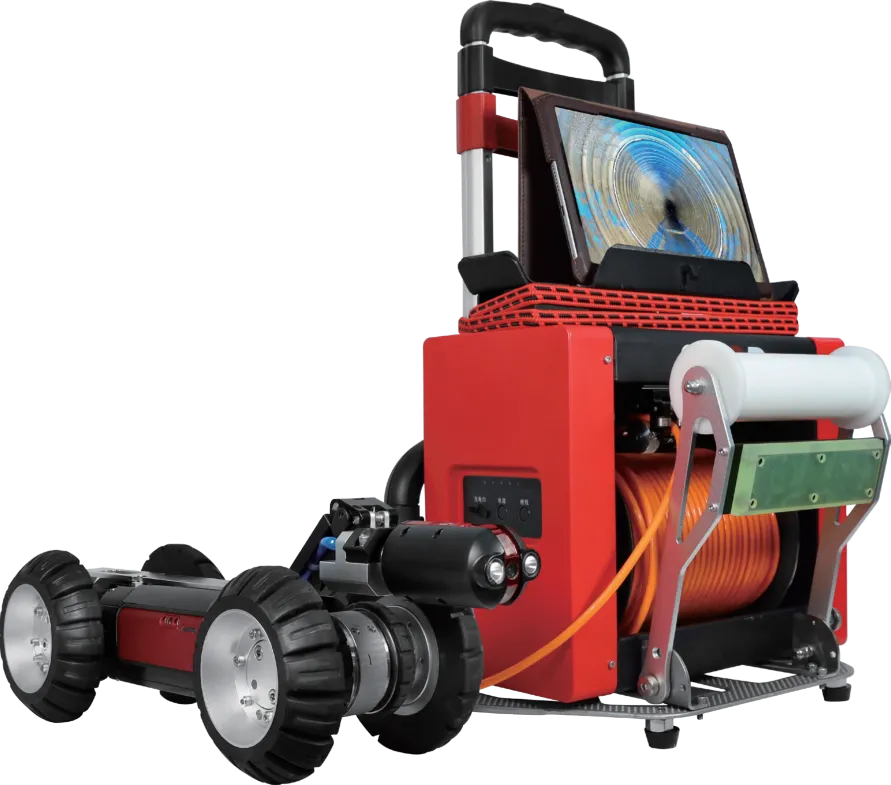

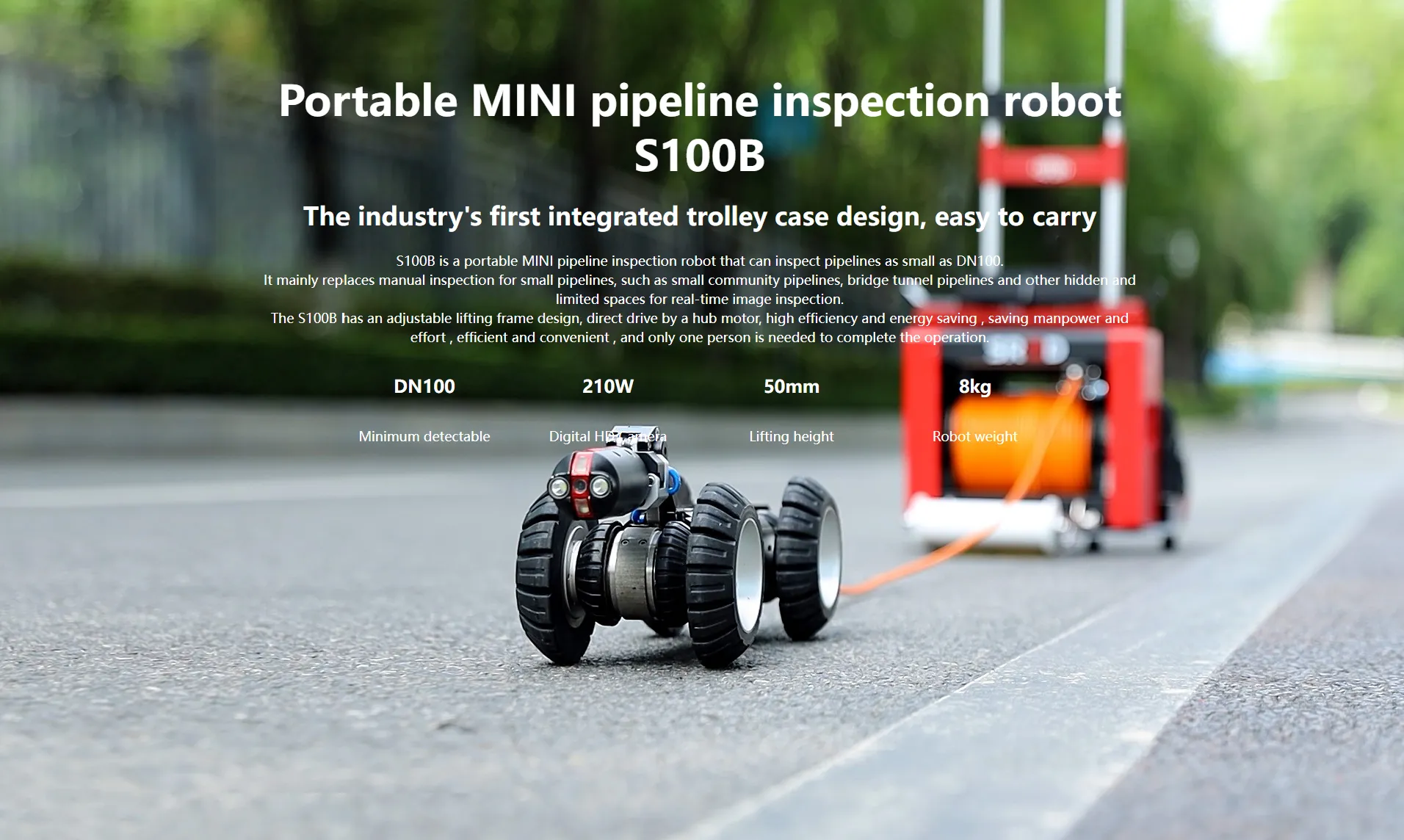

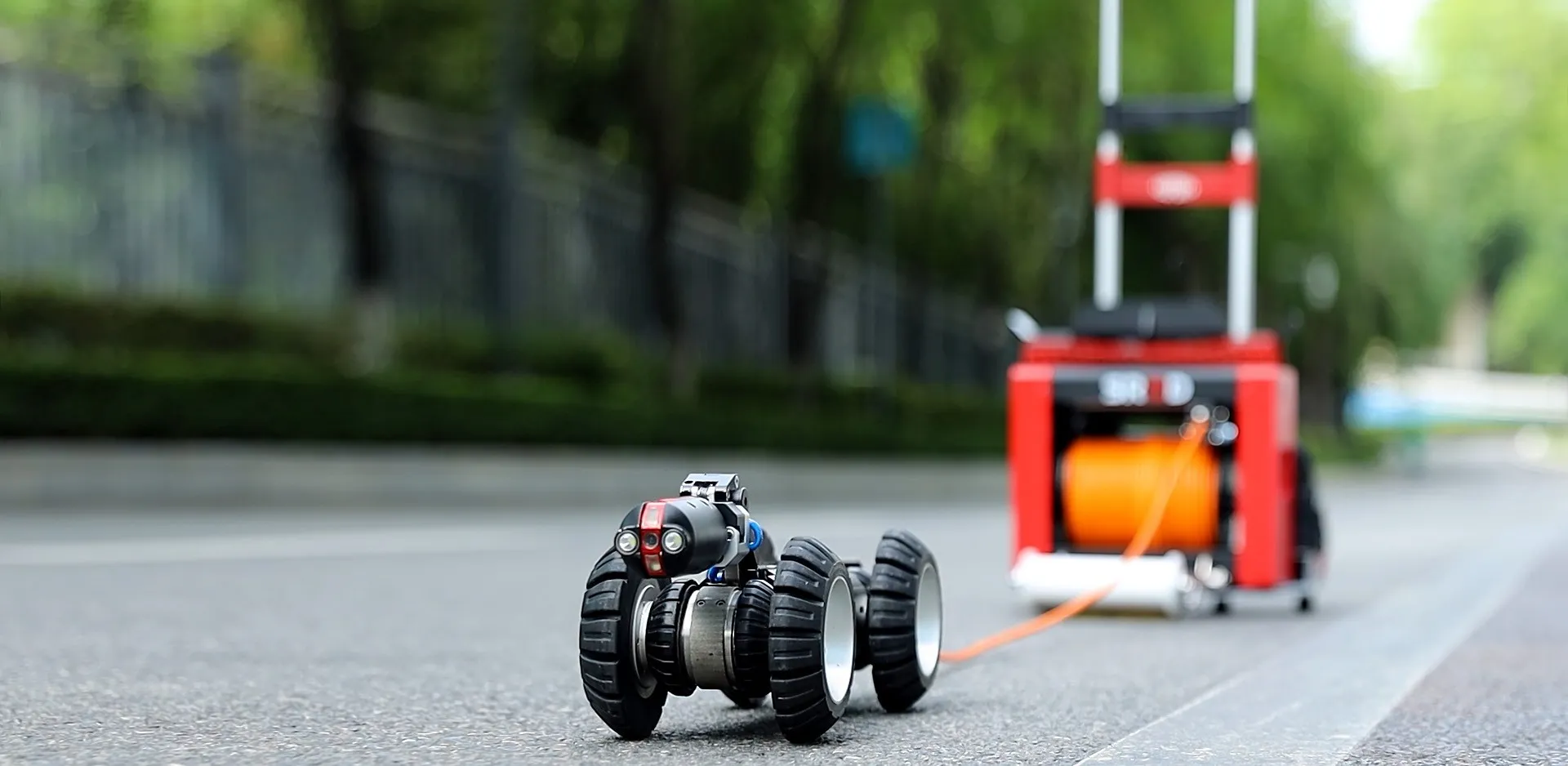

S100B MINI Pipe Inspection Robot - Portable for Small Pipeline Inspection (DN100+), Adjustable Frame, Hub Motor Drive, Energy-Saving & One-Person Operation

Focus On Embodied Intelligent Special-Purpose Robots Of Confined Spaces

EN

PRODUCTS

Technical Parameters

Scope of application DN100mm-1200mm	Controller Type Portable tablet termina
Obstacle surmounting ability Not less than 30°	Protection level IP68
Camera unit Front 210W pixel digital HD camera, 360° axial and 180° radial rotation	Drive Four motor drive, powerful power
Zoom 3× optical as standard, 10× digital as optional	Reeling method Automatic or manual wire reeling and unreeling, automatic wire arrangement
Lifting frame Yes,the lens can be easily raised 50mm	Cables Standard 80m
Positioning With high-precision GPS positioning system, real-time positioning	Meter counting method Absolute encoder, real-time distance display
illumination Main light 2x1W Auxiliary light 2×1W	Anti-rollover design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement optional laser width measurement function	Defogging Optional one-button defog function

Technical Parameters

Scope of application DN100mm-1200mm	Controller Type Portable tablet termina
Obstacle surmounting ability Not less than 30°	Protection level IP68
Camera unit Front 210W pixel digital HD camera, 360° axial and 180° radial rotation	Drive Four motor drive, powerful power
Zoom 3× optical as standard, 10× digital as optional	Reeling method Automatic or manual wire reeling and unreeling, automatic wire arrangement
Lifting frame Yes,the lens can be easily raised 50mm	Cables Standard 80m
Positioning With high-precision GPS positioning system, real-time positioning	Meter counting method Absolute encoder, real-time distance display
illumination Main light 2x1W Auxiliary light 2×1W	Anti-rollover design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement optional laser width measurement function	Defogging Optional one-button defog function
